Edward SIGA-OSHD-FCN + SIGA-SB Addressable Multi Detector with Base
₹ 4,425.00 GST included
Next product
Edward SIGA-270 Addressable single action type Manual Call Point
₹ 5,274.60 GST included

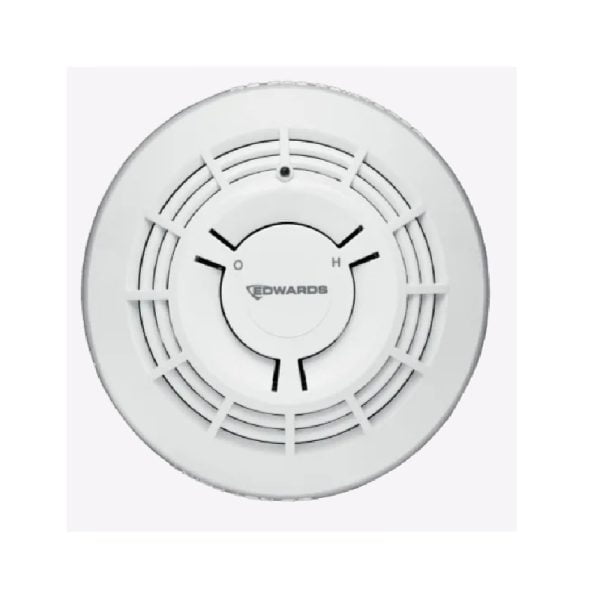

Edward SIGA-OSD-FCN + SIGA-SB Intelligent Photoelectric Smoke Detector with Standard Base
₹ 3,540.00 GST included
Edward SIGA-OSD + SIGA-SB Addressable Smoke Detector with Base brings advanced optical sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.
In stock
Product Code : FSIN00000533
Brand: Edward
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The Signature Optica Series SIGA-OSD smoke detector brings advanced optical sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.
Like all Signature Optica Series detectors, the SIGA-OSD is an intelligent device that gathers analog information from multiple optical sensors, converting this data into digital signals. Utilizing dual optical wavelengths combined with multiple detection angles, the SIGA-OSD differentiates particles that are not representative of actual smoke. Particle data is input into digital filters which feed a series of ratios removing signal patterns that are typical of nuisance sources, thus reducing unwanted alarms. To make an alarm decision, the detector’s on board microprocessor measures and analyzes all optical sensor readings and compares this information to preprogrammed settings.
Compatibility:
The SIGA-OSD detector is compatible only with control panels using a Signature Loop controller.
SIGA-OSD-FCN: Manufactured at FCN.
Features
- Multi-criteria optical smoke sensing technology
- Five Sensitivity Settings
- Wide 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) smoke obscuration
- Integrated nuisance rejection reducing unwanted alarms from general cooking particulates
- Uses existing wiring
- Listed to UL 268 7th edition
- Automatic device mapping
- Sensor Markings Provide Easy Testing Identification
- Up To 250 Total Signature Addresses Per Loop
- Twenty Pre-Alarm Settings
- Automatic Day/Night Sensitivity Adjustment
- Bicolor (Green/Red) Status LED
Specifications
- Brand: Edward
- Condition New
- Operating Voltage 15.20 to 19.95 VDC
- Alarm Current 45 µA
- Air Velocity 0 to 4,000 ft./min (0 to 20.32 m/s)
- Normal operating current 32 µA
- Vibration level 10 to 35 Hz, with an amplitude of 0.01 inch
- Smoke Sensitivity Range UL/ULC: 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) obscuration
- Air velocity 0 to 4,000 ft./min (0 to 20 m/s)
- Wall mounting 12 in. (305 mm) max. from ceiling
- Operating environment 32 to 120°F (0 to 49°C), 0 to 93% RH, noncondensing
- Construction High Impact Engineering Polymer, White
- Storage temperature -4 to 140°F (-20 to 60°C)
- Environmental compensation Automatic
- Agency Listings CAN/ULC-S529, UL 268-7, UL 268A
