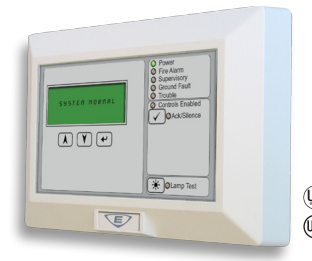

Edwards – f Repeater Panel, with required communication modules & battery backup – Model No: EST RLCD-CR + RS485
₹ 63,720.00 GST included
Edwards R-Series Annunciators are high-performance remote
annunciators that provide status indication and common controls
for compatible fire alarm control panels, including E-FSA-Series
small analog fire alarm systems. This family of annunciators offers
LCD or LED annunciation. Models are available with and without
common controls.
There are three R-Series annunciator models, plus an LED-based
expander. Up to two expanders can be connected to any annunciator. The expander includes 24 pairs of LEDs that extend the
capabilities of any of the annunciators.
All annunciator models include status LEDs and an internal buzzer.
Two models have an LCD text display, and one has 16 pairs of
LEDs for zone annunciation. LCD models feature a large back-lit,
four by twenty character per line, super-twist liquid crystal display
Description
Edwards R-Series Annunciators are high-performance remote
annunciators that provide status indication and common controls
for compatible fire alarm control panels, including E-FSA-Series
small analog fire alarm systems. This family of annunciators offers
LCD or LED annunciation. Models are available with and without
common controls.
There are three R-Series annunciator models, plus an LED-based
expander. Up to two expanders can be connected to any annunciator. The expander includes 24 pairs of LEDs that extend the
capabilities of any of the annunciators.
All annunciator models include status LEDs and an internal buzzer.
Two models have an LCD text display, and one has 16 pairs of
LEDs for zone annunciation. LCD models feature a large back-lit,
four by twenty character per line, super-twist liquid crystal display
Features
- LCD models feature large 4 x 20 character backlit LCD display
- LED models provide 16 pairs of LEDs for zone annunciation
- Available expander extends capability with 24 pairs of LEDs
- Up to two expanders may be wired to each annunciator
- Status LEDs and internal buzzer standard on all models
- Common controls available for LED and LCD display models
- Available keyswitch for disabling common controls
Specifications
- Model No: EST RLCD-CR + RS485
- Make: Edward
- Operating voltage 24 VDC, continuous
- Operating environment Temperature: 32 to 120°F (0 to 49°C) Humidity: 0 to 93% RH, noncondensing at 90°F (32°C)
