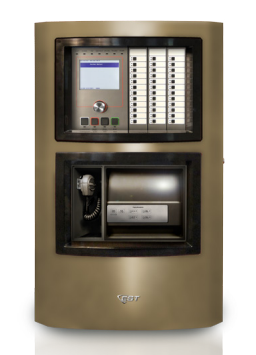

EST- Fire alarm control panel Single Loop Model no : EST-3X

Name: EST- Fire alarm control panel Single Loop Model no : EST-3X
SKU: FSIN0000361180
Price: 197532.00 INR
Availability: InStock

See all products from est

₹ 197,532.00 GST included

Compare

Product Code : FSIN0000361180 Brand: EST Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

EST3X represents the latest generation of life safety control panels
for mid to large sized applications. With large multi-message displays and innovative controls, intuitive interfaces, and bold colored
cabinets — these systems capture the imagination, and catch the
eye. But behind the LCD display is where they really shine.
New microprocessors and chipsets take full advantage of the latest advances in computing technology, leading to smarter, faster,
higher-capacity processing and more efficient designs. EST3X’s
patented Voltage Boost™ technology, for example, delivers consistent voltage – even at low battery power – resulting in lighter cable
requirements and/or longer runs. That saves time and money.

Features

Up to six intelligent analog loops hosting as many as 1,500 Signature Series devices per panel
Optional integrated eight-channel digital audio
10 amp power supply with universal 94 to 264 Vac input voltage
Patented Voltage Boost™ technology delivers consistent voltage — even at low battery power
Four built-in 3-amp notification/auxiliary circuits
Large 24-line by 40-character backlit LCD
Simplified operation with the SpeedTouch™ rotary control

Specifications

Model No: EST-X3
Make: EST
Voltage 24 VDC
Operating current with fully loaded loop Standby 3-SSDC1 144 mA; 3-SDDC1 264 mA Alarm 3-SSDC1 204 mA; 3-SDDC1 336 mA
Operating environment Temperature 32 to 120°F (0 to 49°C) Relative humidity 0 to 93% noncondensing
