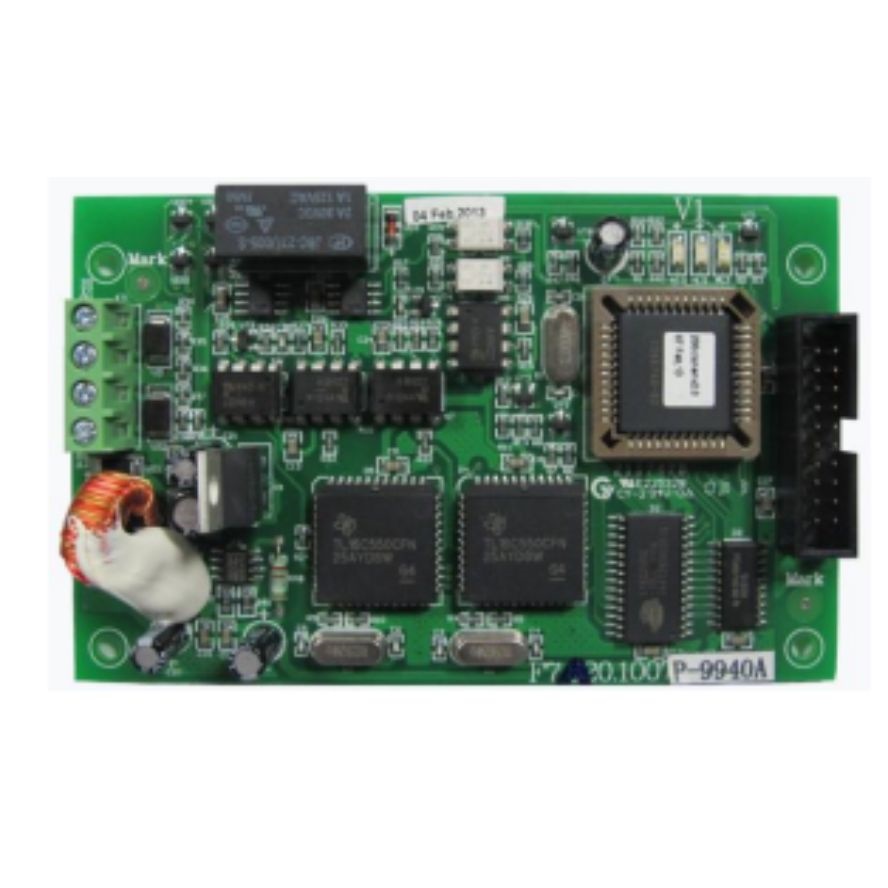

GST Class A RS485 Network Card for GST200N panel & NRP00 Repeater Panel, P-9940A

Name: GST Class A RS485 Network Card for GST200N panel &amp; NRP00 Repeater Panel, P-9940A
SKU: FSIN0000362509
Price: 12921.00 INR
Availability: InStock

See all products from gst

₹ 12,921.00 GST included

Two Photoelectric Isolation RS485 Interfaces. Suitable for Ring Network. Card Shouldn’t be Inserted and Removed when it is Energized.

In stock

Compare

Product Code : FSIN0000362509 Brand: GST Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

GST Class A RS485 Network Card for GST200N panel & NRP00 Repeater Panel, P-9940A is an Optional Card for GST200 Series Control Panels, Providing Two Photoelectric Isolation RS485 Interfaces. This Card Shouldn’t be Inserted and Removed when it is Energized. When Entering Calibration Mode, pressing SK1 key (reset main board), it will Display Color CRT OK if Registration is Successful.

Features

Two Photoelectric Isolation RS485 Interfaces
Suitable for Ring Network
Card Shouldn’t be Inserted and Removed when it is Energized.

Specifications

Brand : GST
Comm. Interface : Two RS485 Interface
Comm. Distance : The Distance between Two Neighbor Nodes is less than 1200m
Network Capacity : Maximum 32 GST series control panels for networking
Transmission Medium : 1.0 mm2 or above twisted pair, shielded twisted pair is recommended
Baud Rate : 2400bps
Ambient Temperature : 0 Deg. C to Plus 40 Deg. C
Relative Humidity : Less than or Equal to 95 Percent, Non condensing
