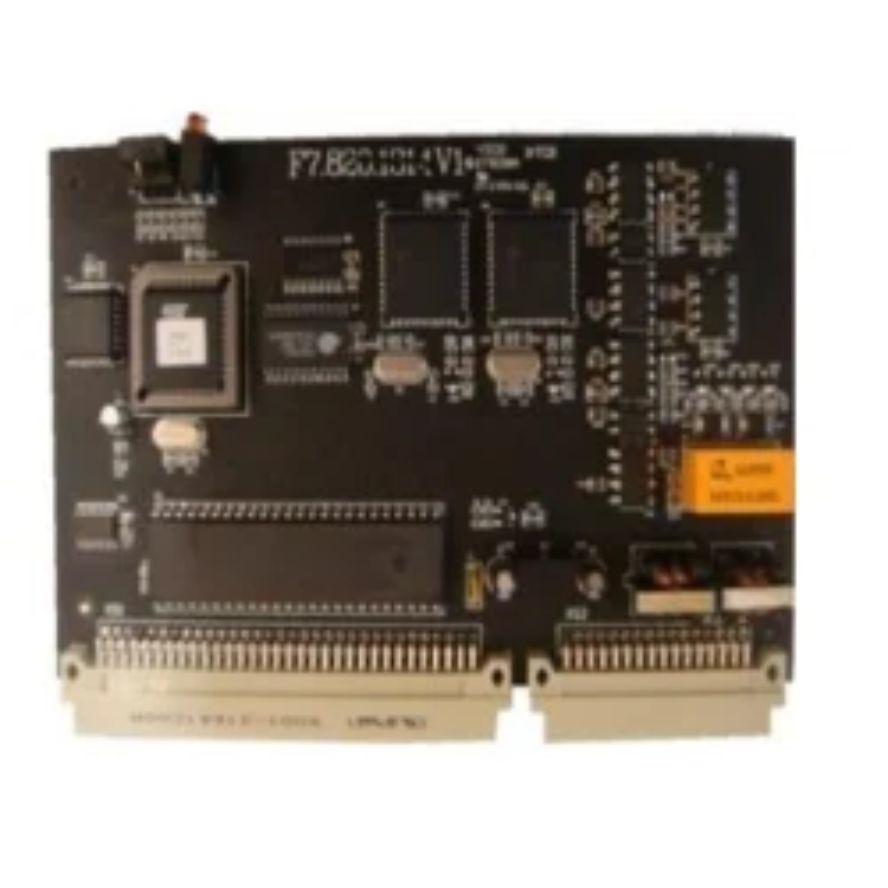

GST Class A RS485 Network Card for IFP8 panel, P-9945A
₹ 15,222.00 GST included
Two Photoelectric Isolation RS485 Interfaces. Suitable for Ring Network. Card Shouldn’t be Inserted and Removed when it is Energized.
In stock
Description
GST Class A RS485 Network Card for IFP8 panel, P-9945A is an Optional Card for GST-IFP8 Control Panel, Providing Two Photoelectric Isolation RS485 Interfaces for Ring Network. This Card shouldn’t be Inserted and Removed when it is Energized. Network OK is Displayed when the Panel is
Switched on. That Means Successful Registration.
Features
- Two Photoelectric Isolation RS485 Interfaces
- Suitable for Ring Network
- Card Shouldn’t be Inserted and Removed when it is Energized
Specifications
- Brand : GST
- Comm. Interface : Two RS485 Interface
- Comm. Distance : The Distance between Two Neighbor Nodes is less than 1200m
- Network Capacity : Maximum 32 GST series control panels for networking
- Transmission Medium : 1.0 mm2 or above twisted pair, shielded twisted pair is recommended
- Baud Rate : 4800bps
- Ambient Temperature : 0 Deg. C to Plus 40 Deg. C
- Relative Humidity : Less than or Equal to 95 Percent, Non condensing
