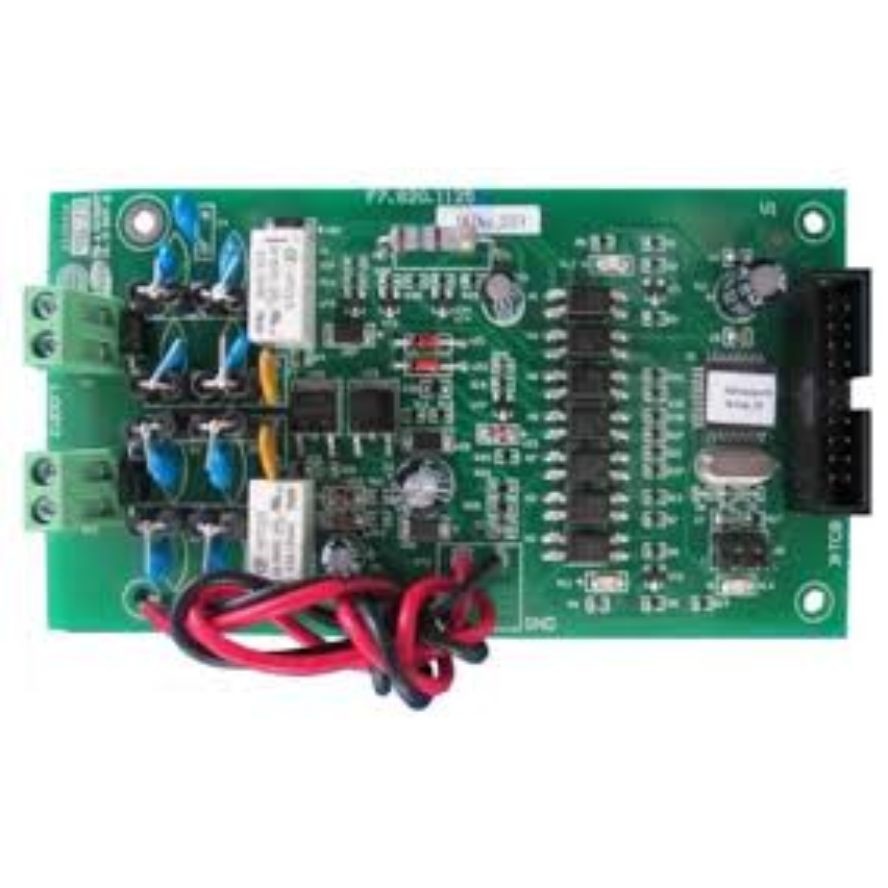

GST Single Loop Card for GST200N panel, LC200
₹ 22,302.00 GST included
Connecting with Loop Devices. Add one Loop to connect 242 Addressable Devices. Card Shouldn’t be Inserted and Removed when it is Energized.
In stock
Description
GST Single Loop Card for GST200N panel-LC200 is An Optional Card for GST200 Series Control Panels, Used to Extend additional Detection Loops for Connecting more Devices with the System. One Card is only used in the Control Panel, it shouldn’t be Inserted and Removed when it is Energized.
Features
- Connecting with Loop Devices
- Add one Loop to connect 242 Addressable Devices.
- Card Shouldn’t be Inserted and Removed when it is Energized.
Specifications
- Brand : GST
- Comm. Interface : Loop Interface
- Ambient Temperature : 0 Deg. C to plus 40 Deg. C
- Relative Humidity : Less than or Equal to 95 Percent, Non condensing
Related products
Close
TrueSafe – TrueSafe Flame Proof Bi-Metallic heat detector (Probe type) Model no : TDS-FBHT001
The TrueSafe TDS-FBHT001 Flame Proof Bi-Metallic Heat Detector (Probe Type) is a rugged and reliable fixed-temperature heat detection device designed
Close

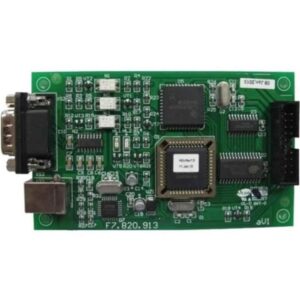

GST Communication Card for GST200N Panel, P-9930
Standard RS232 and USB interfaces. Connecting GST Graphic Monitor Center
and GST Defining Tool. Card Shouldn’t be Inserted and Removed when it is Energized.
Close
Edwards Telephone Handset Model no : 6830-3
The Edwards 6830-3 Telephone Handset is a dependable communication device engineered for use in Edwards fire alarm and emergency voice
Close
Esser – Network Card – Esser by Honeywell Model no : 784841.1
The Esser by Honeywell 784841.1 Network Card is a high-performance communication module designed to interconnect multiple fire alarm control panels
Close
GST Class A RS485 Network Card for IFP8 panel, P-9945A
Two Photoelectric Isolation RS485 Interfaces. Suitable for Ring Network. Card Shouldn’t be Inserted and Removed when it is Energized.
Close

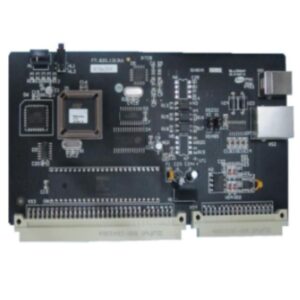

GST ModBus Communication Card for IFP8 panel, P-9935ModBus
Complying with Modbus RTU Communication
Protocol. Standard RS232 interface, used for System Integration of the Third Party. Card Shouldn’t be Inserted and Removed when it is Energized. Default DIP Code is 6.
Close
Edwards CAB21B Backbox for EST4 Panel
The Edwards CAB21D Backbox is a heavy-duty enclosure designed specifically for housing modules within the Edwards EST4 Fire Alarm Panel
Close
EDWARDS – EST3 to BMS Communications Bridges – Model FSB-PC2 and FSB-PCLW
The EST3 Communication Bridges are ancillary devices that
provide protocol translation between EST3 serial data and the
serial or Ethernet input of an external device controller. Signal
flow is typically one way — from the EST3 network to the building
automation system.
Two communication bridges are available for use with EST3
systems. Each comes complete with the EST3 driver necessary to
communicate over a single supported protocol.
The FSB-PC2 is a multi-protocol bridge that converts the EST3
External Communications Protocol (ECP) to any one of several
supported protocols including Modbus RTU, BACnet MSTP and
Metasys N2. It operates over RS-232 or RS-485 serial communications or Ethernet (10/100 Base-T).
The FSB-PCLW is a single-protocol bridge that converts the
EST3 External Communications Protocol (ECP) to Lon Works only.
