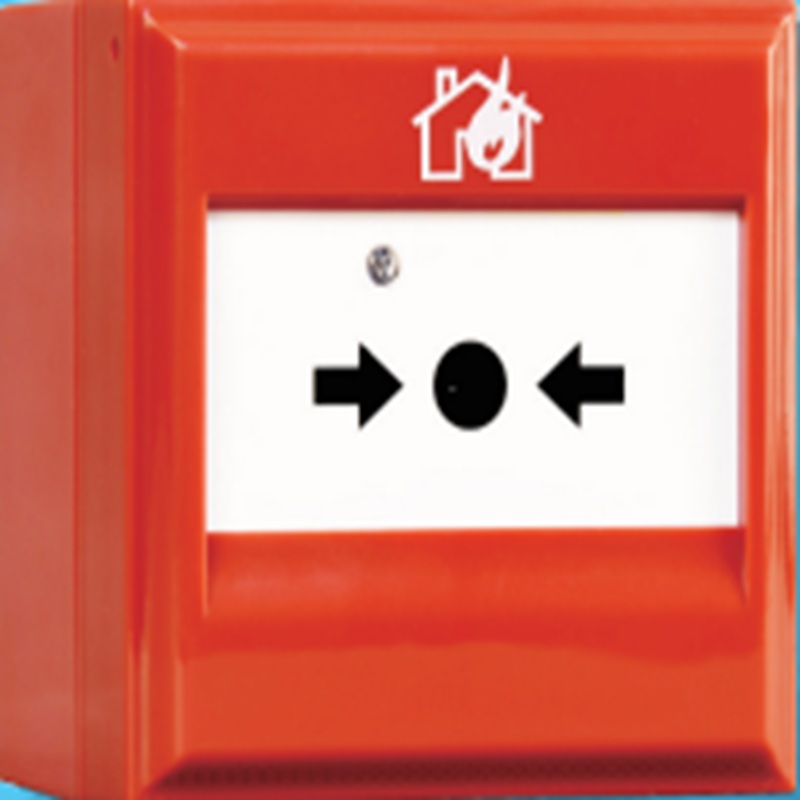

GST – GST Digital Manual Call Point Model no : DI-9204E
₹ 3,398.40 GST included
Description
The GST DI-9204E Digital Manual Call Point is a reliable addressable fire alarm activation device designed for quick manual triggering of a fire alarm during emergency situations. Installed in accessible locations such as corridors, staircases, and exits, this device allows occupants to immediately alert the fire detection system by simply pressing the call point.
Engineered with advanced digital communication technology, the DI-9204E integrates seamlessly with GST addressable fire alarm control panels. Its robust construction, stable performance, and clear visual indication make it ideal for use in commercial buildings, industrial facilities, hotels, hospitals, shopping malls, and other public infrastructures.
Features
- Electronically addressed by programmer
- Alarm is triggered by pressing, reset by a special key
- Plug-in structure
- Addressable digital manual call point for GST fire alarm systems
- Quick and easy manual activation during fire emergencies
- LED indicator for alarm status and system communication
- Resettable design using a special key for convenient maintenance
- Stable and reliable communication with fire alarm system
Specifications
- Operating Voltage loop 24V (16V ~ 28V)
- Standby Current ≤0.6mA
- Alarm Current Part ≤1.8mA
- Type of Initiating Part Reusable
- Initiating Mode Pressing the action plate manually
- Class Type A, indoor use
- Ambient Temperature -10°C ~ +55°C
