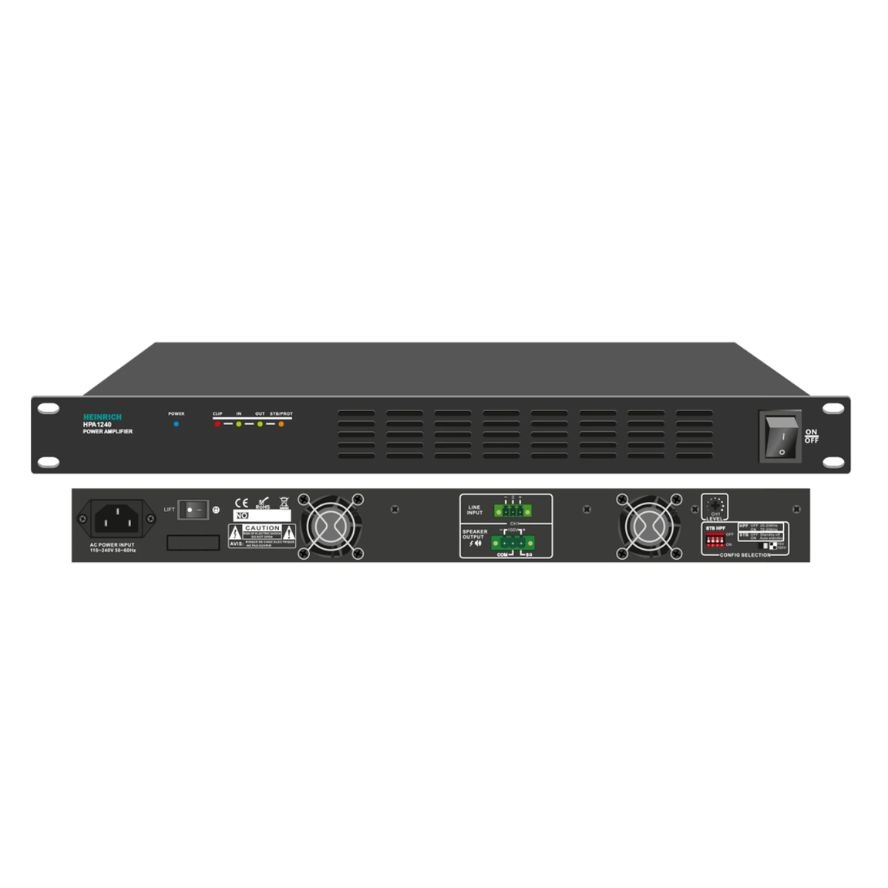

Heinrich HPA1240 (240W Class-AB Power Amplifier)
₹ 34,692.00 GST included
Rack mount PA 100 Volt Amplifier in 1U Type.
Rated Power of 240W. 100V and 4-16-ohm Speaker Outputs. Isolated Transformer for Human Safety Operation. Balanced XLR-type line input and Unbalanced Phone jack line input. Balanced XLR-type line output feeds to another power Amplifier. Reliable Protection of over Heat, Overload, Clip & Short Circuit. Indications for Power, Signal, Clip, Protection and Temperature.
In stock
Description
Heinrich HPA1240 (240W Class-AB Power Amplifier) is a Powerful and Versatile Power Amplifier specifically Designed for Public Address applications in Commercial and Industrial settings. With its Sleek 1U Rack Mount Design, this Amplifier offers a Reliable and Efficient solution for your Sound System needs. Featuring a Robust 240W Power rating, the HPA1240 provides ample power to meet the requirements of different-sized venues. The inclusion of both balanced and unbalanced line inputs allows installers to easily select the input type that best suits their setup. In addition, the balanced line output ensures optimal signal transmission with minimal noise interference, allowing you to connect to other power amplifiers seamlessly.
Features
- Rack mount PA 100 Volt Amplifier in 1U Type
- Rated Power of 240W
- 100V and 4-16-ohm Speaker Outputs
- Isolated Transformer for Human Safety Operation
- Balanced XLR-type line input and Unbalanced Phone jack line input
- Balanced XLR-type line output feeds to another power Amplifier
- Reliable Protection of over Heat, Overload, Clip & Short Circuit
- Indications for Power, Signal, Clip, Protection and Temperature
Specifications
- Brand : Heinrich
- Rated Power Output : 240W
- Speaker Output : 100V, 4-16 ohm
- Input : 10kohm lessthan 1V, Unbalanced Mono jack and Balanced input
- Output : 10kohm 0.775V, Unbalanced Mono Jack and Balanced output
- Frequency Response : 60Hz to 15kHz
- S/N Ratio : More than 70dB
- THD : Less than 0.1 percent at RMS, 1 KHz, 1/3 Rated Power
- Cooling System : Fan Auto Open when internal temp. reaches 55 deg. C
- Protection : Temp., Overload, Short Circuit and clip
- Power Consumption : 324W
- Dimension : 482mm x 420mm x 44mm
