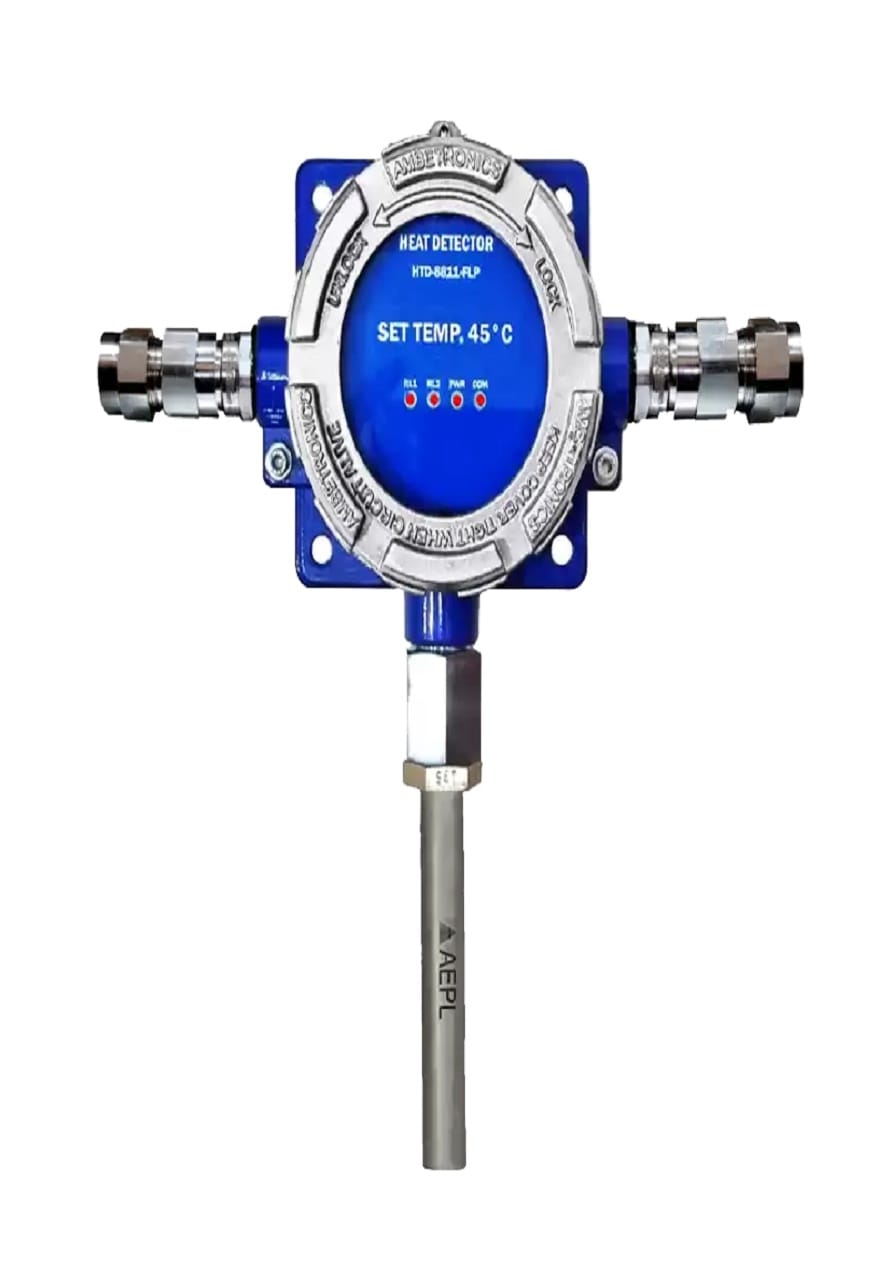

Ambetronics Flame Proof Probe type Fixed tempareture Heat Detector
₹ 33,187.50 GST included
Detection Technique. Rated Alarm Temperature. Set Point. Auto-Reset Operation. LED Indicators. Low power consumption. Supports flexible or armored shielded cable. Operates on a supply voltage power of 18 to 36 VDC, typically 24 VDC. User-Friendly Operation.
In stock
Description
Ambetronics Flame Proof Probe type Fixed tempareture Heat Detector is an innovative solution for detecting heat build-up in various industrial settings. Unlike conventional heat detectors, this device operates with a unique configuration. It features a Potential-Free NO (Normally Open) contact output, which remains open when the ambient temperature is below the set point and becomes short when the temperature exceeds the set point. The detector has a wide temperature range of 40°C to 90°C, with a factory preset option available. Designed for reliability, the detector offers fast response to overheat conditions and comes equipped with auto-reset functionality, resetting itself after the temperature cools down. With low power consumption (less than 3W), it ensures energy efficiency. The electrical specifications include a supply voltage range of 18 to 36 VDC and two relay contacts for primary and secondary alarms.
Features
- Detection Technique
- Rated Alarm Temperature
- Auto-Reset Operation
- LED Indicators
- Low power consumption
- Supports flexible or armored shielded cable
- Operates on a supply voltage power of 18 to 36 VDC, typically 24 VDC
- User-Friendly Operation
Specifications
- Brand : Ambetronics
- Wiring : Supports flexible or armored shielded cable (1.5mm) for supply and output, with two pairs of black-white wires for Class A and Class B looping
- Weight : Approximately 125g for the sensing element and 2kg for the body
- Mounting Options : Wall, Stand, and Pipe mounting
