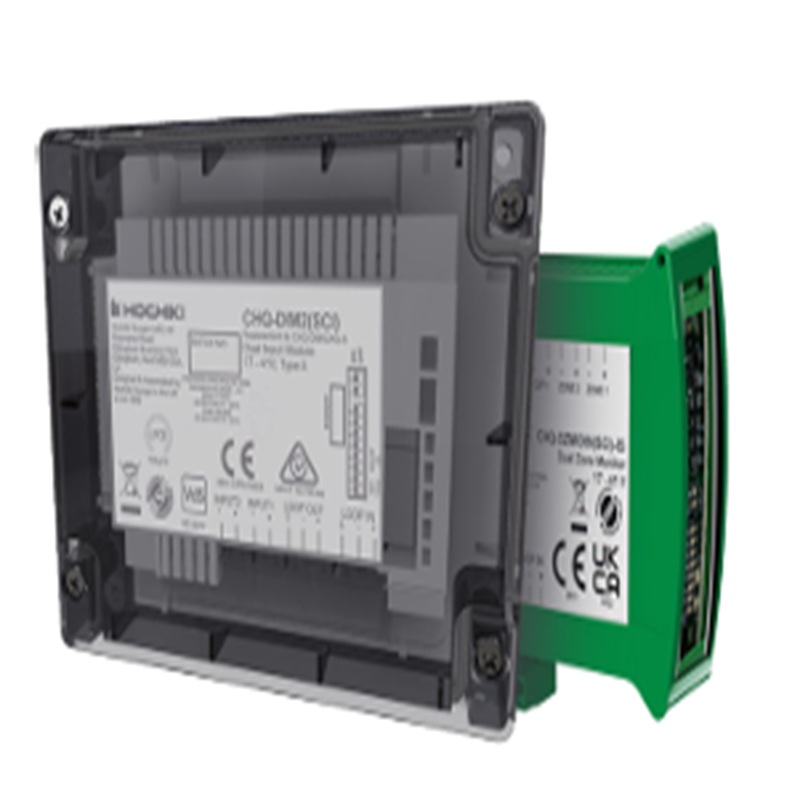

Hochiki – Dual Input Module Model no : CHQ-DIM2(HFP)-SCI

Name: Hochiki - Dual Input Module Model no : CHQ-DIM2(HFP)-SCI
SKU: FSIN00003624116
Price: 14177.70 INR
Availability: InStock

See all products from hochiki

₹ 14,177.70 GST included

Compare

Product Code : FSIN00003624116 Brand: Hochiki Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The Hochiki CHQ-DIM2(HFP)-SCI Dual Input Module is a compact, loop-powered analogue addressable interface module designed to monitor two independent volt-free contact inputs within a Hochiki ESP fire alarm system. Featuring an integral Short Circuit Isolator (SCI), the module enhances system reliability by isolating faults on the loop while maintaining communication with the remaining devices. Ideal for monitoring sprinkler flow switches, door contacts, plant equipment, and other auxiliary devices, the CHQ-DIM2(HFP)-SCI offers flexible configuration for both Normally Open (NO) and Normally Closed (NC) contact monitoring.

Features

Dual independent inputs for monitoring volt-free contacts.
Loop-powered operation with no separate power supply required.
Integral Short Circuit Isolator (SCI) for improved loop integrity.
Single address on the Hochiki ESP analogue addressable loop.
Each input configurable for Normally Open (NO) or Normally Closed (NC) contacts.
Compatible with sprinkler flow switches, door contacts, plant equipment, and other external devices.
Supports High Performance (HFP) ESP protocol.
Optional CHQ-BACKBOX increases enclosure protection to IP65.
