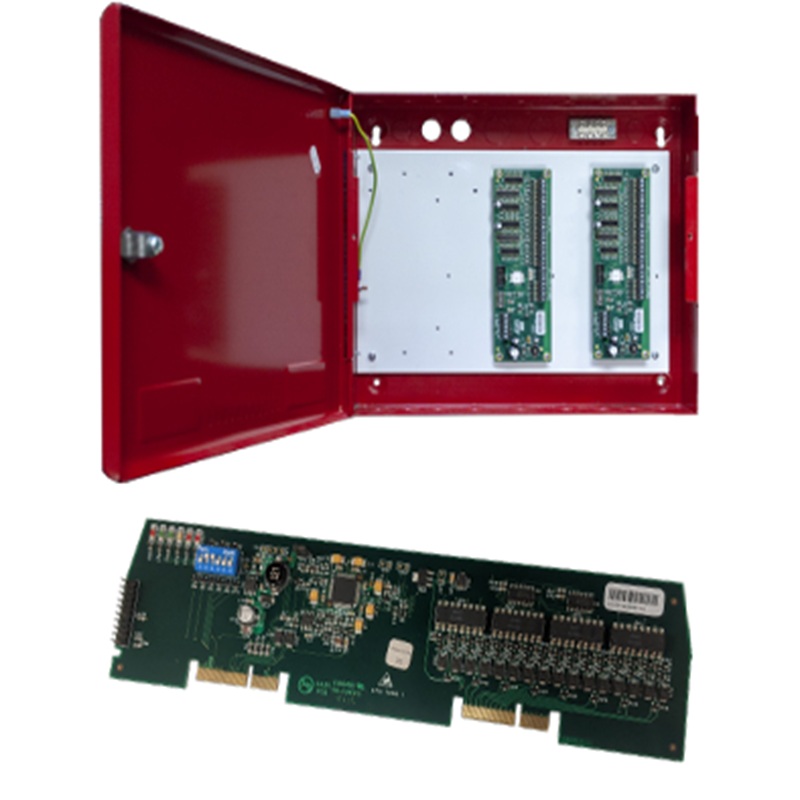

Hochiki – Mimic Panel Flow Switch PCB Board,16 Channel I/O Interface Board Model no : K6006

Name: Hochiki - Mimic Panel Flow Switch PCB Board,16 Channel I/O Interface Board Model no : K6006
SKU: FSIN00003624109
Price: 83669.08 INR
Availability: InStock

See all products from hochiki

₹ 83,669.08 GST included

Compare

Product Code : FSIN00003624109 Brand: Hochiki Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The 16 Channel I/O Interface enhances the versatility of the alarm system by providing additional input and output capabilities to the L@titude Fire Alarm Control Panel. Inputs or outputs can be selected up to 16 individual channels. All inputs and outputs are configured in the same way as devices connected to addressable loops of the panel. The 16 Channel I/O Interface can be configured to contribute or act upon cause and effect logic. Input points of this device are not supervised and therefore shall not be used for life safety initiation within a UL listed system. In a UL application this module must be housed in the panel or a listed enclosure connected to the panel by metal conduit. Power must also be provided by a UL listed power supply.

Features

Simple ‘plug-in’ connection
Simple ‘plug-in’ connection
Each channel configurable as input or output
Up to 4 boards supported per 2-8 loop panel (maximum of 64 input/output channels)
Up to 8 boards supported per 2-16 loop panel (maximum of 128 input/output channels)
Inputs opto-isolated
Inputs opto-isolated
Inputs and outputs configurable as per field devices
Full cause and effects on all inputs and outputs
