Description
Ravel RE-104R 4 Zone Conventional Fire Alarm Control Panel, which uses conventional input devices. The Outputs include Notification Appliance Circuits (sounders), two programmable Form – C relays, an RS-485 port to interface with annunciators, and optional zone-wise sounder & zone-wise contact. The FACP is field programmable via the panel keypad. It also supervises all wiring, AC voltage, and battery level. Optional ethernet, & GSM ports are used for transmission. This Fire Alarm Control panel is designed to be used for small-size commercial buildings and small-scale industries.
Features
- All zones accept smoke detectors and any normally open contact device
- Fire / Fault status in unambiguous colored LED indication
- 2 programmable relays for fire, supervisory and fault
- Any Zone can be configured as alarm or supervisory
- Zone wise isolation and one man walk test facility
- Standby battery backup with built in charging
- Low Battery visual warning with audible tone
- Tactile Keypad for easy panel operation
- Zone wise sounder / contact (optional)
- All field wiring circuits are supervised
Specifications
- Product: 4 Zone Fire Alarm Panel
- Brand: Ravel
- Model: RE-104R
- Primary Power: 120 / 230VAC + 10% -15%, 60 / 50 Hz, 50W
- Standby Power: 24VDC (2 Nos of 12V, 3.5Ah Sealed Lead acid battery)
- Quiescent Current: 40mA
- Material: FRABS plastic
- Cable Entry: 11 x ø19mm Knockout on top of the cabinet
- Dimensions: 300L X 200W X 95D
- Wire Size 1.5 Sq mm
Related products
Close
Safe On 14 Zone Conventional Fire Alarm Panel With LED Display
Safe On 14 Zone Conventional Fire Alarm Panel With LED Display is a standalone system, with 16 X 2 LCDcharacter, 2 zones detection circuit,3 common potential free contacts & a common NAC sounder output, wall/ceiling mounted, Switch mode power supply- SMPS & Battery polarity & Deep discharge protection. RE-102 fire alarm control panel is designed with unique protocol to be used for small commercial building and small scale industries.
Close
Freeze Fire 4 Zone Fire Alarm Panel
Freeze Fire 4 Zone Fire Alarm Panel of Microprocessor based fire alarm panels provides a reliable and cost effective solutions to fire detection, for small installation which is 2 zone.
Close
On Spotfire 2 Zone Fire Alarm Panel
On Spotfire 2 Zone Fire Alarm Panel of Microprocessor based fire alarm panels provides a reliable and cost effective solutions to fire detection, for small installation which is 2 zone.
Close
Agni Hunt 22 Zone Fire Alarm Panel
Agni 22 Zone Fire Alarm Panel of Microprocessor based fire alarm panels provides a reliable and cost effective solutions to fire
detection, for small installation which is 2 zone.
Close
Agni Hunt 20 Zone Fire Alarm Panel
Agni Hunt 20 Zone Fire Alarm Panel of Microprocessor based fire alarm panels provides a reliable and cost-effective solution to fire detection, for small installations which are 20 zones.
Close
On Spotfire 4 Zone Fire Alarm Panel
On Spotfire 4 Zone Fire Alarm Panel of Microprocessor based fire alarm panels provides a reliable and cost effective solutions to firedetection, for small installation which is 2 zone.
Close

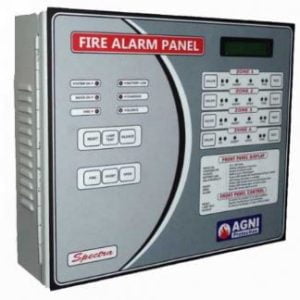

Agni Hunt 24 Zone Fire Alarm Panel
