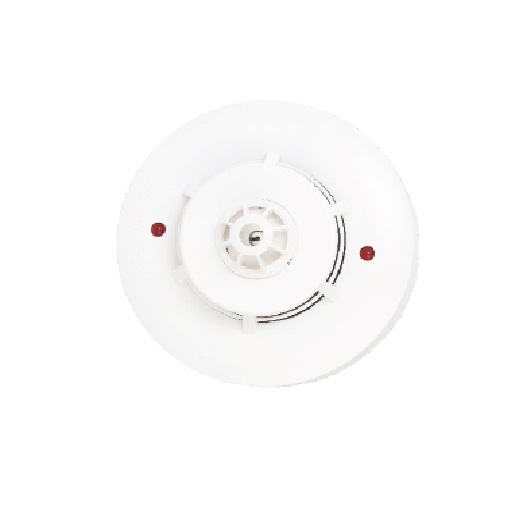

RE 317D – SHL-Analogue Addressable Multi Detector – Ravel
₹ 2,312.80 GST included
The fixed cum rate of rise heat detector works using a
thermistor. These detectors will raise an alarm when the detector
reaches 59O C(Fixed) or when the change in temperature exceeds
the rate of rise of 11O C / min.It has an unique chamber designed to
sense smoke produced by wide range of sources of combustion. The
detectors sensitivity can be programmed via FACP. It has a unique
drift compensation
Description
The RE 317D-SHL addressable multi detectors are designed to work
with Avani Panel. These detectors are low profile and have dual
LED’s for 360O visual indication. T
whereas the steady state indicates fire status.
The fixed cum rate of rise heat detector works using a
thermistor. These detectors will raise an alarm when the detector
reaches 59O C(Fixed) or when the change in temperature exceeds
the rate of rise of 11O C / min.It has an unique chamber designed to
sense smoke produced by wide range of sources of combustion. The
detectors sensitivity can be programmed via FACP. It has a unique
drift compensation feature detector adjusts its normal
reference based on environment conditions.
he blinking LED’s indicate normal
operating condition
wherein the
Features
- Brand Ravel
- UL Approved
- Dual LED’s for 360 visibility
- Advanced detection and communication protocol.
- Easy installation and maintenance
- Sleek low-profile housing design.
- Regular 100mm base.
- Max. 254 Address setting through 8 way DIP switch.
Specifications
- Operating Voltage : 17 ~ 28V DC
- Reset Voltage : less than 3V
- Standby current : 500 μA.
- Start up time : 30s
- Alarm Current : 5 mA.
- Remote Output : 2mA maximum open collector
- Thermal Rating : 59 OC (138 OF)
- Rate of Raise of Temp : 11.1OC / min (20OF/min) Smoke Sensitivity : (2.12 ± 0.61) % / ft
- High : 1.1% ft Middle : 1.4% ft Low : 2.3% ft
- Air Velocity : 0 - 4000 fpm
- Operating Temperature : -10 OC to 37.8 OC
- Humidity : 0 - 95% RH, non-condensing
