Description

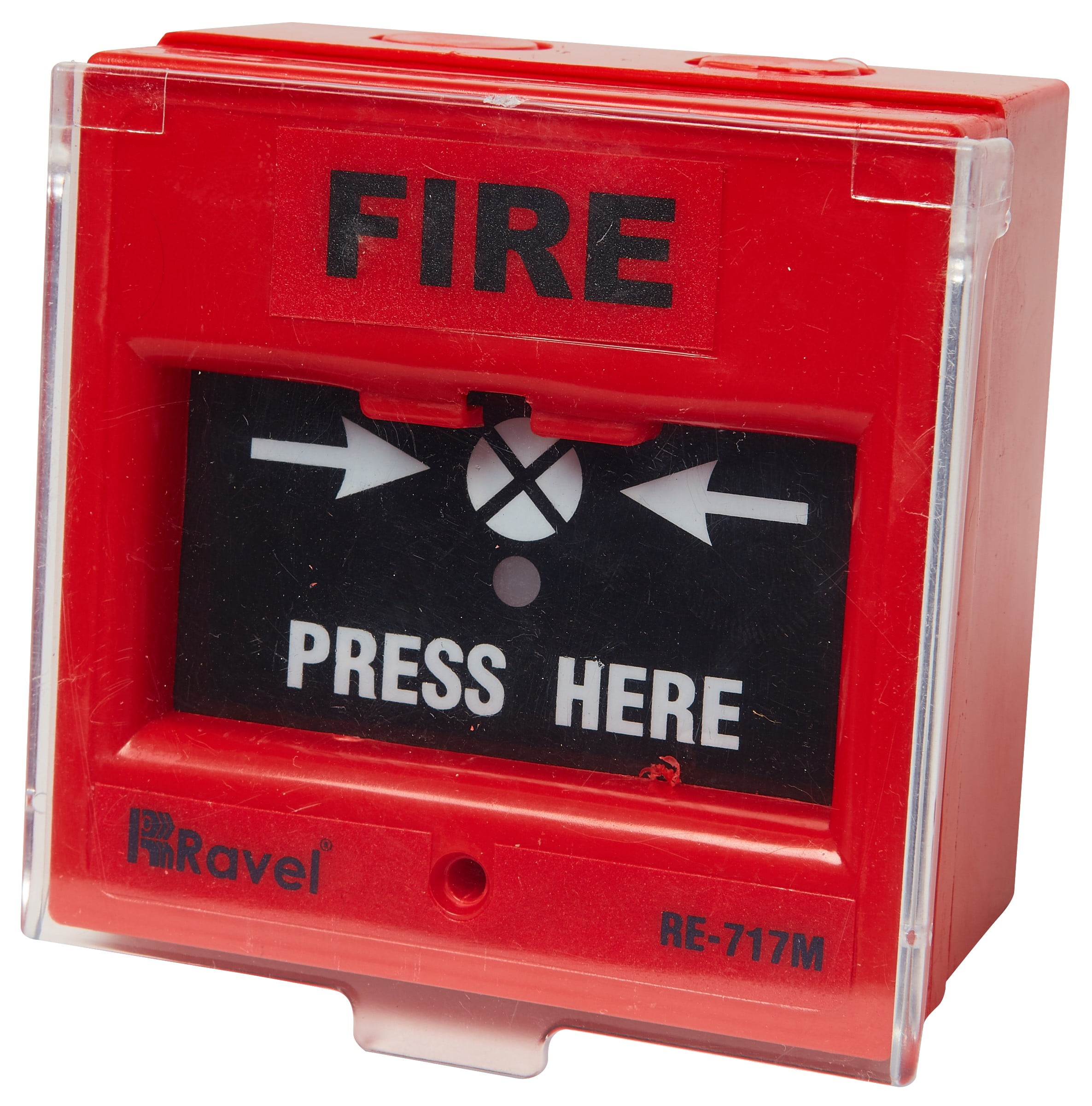

Ravel Electronics Re-717m Addressable Manual Call Point Ravel Electronics Pvt. Ltd Model: Re-717m Voltage: 17-28v Re-717m Series Addressable Manual Call Point Weight : 200 Gm Condition : New 6 Pcs Ref No : 65066
Features
- EN54-11 Approved Type A Indoor Use.
- Re-Settable by an element kit.
- Suitable for flush or surface mounting
- Module Addressing by 8 way DIP Switches.
- Low Standby Curren
Specifications
- Operating Voltage : 24VDC.
- Power-up surge current : 0.8mA
- Quiescent Current : 0.5mA.
- Alarm Current : 5.8mA
- Temperature : 0 – 49 °C
- Relative Humidity : 0 – 93% non-condensing
- Connection : 2.5mm2 Max.
- Weight : 125g.
- IP Rating : IP 53
- Dimension : 92mm X 92mm X 48 mm
