Crimscent Flame Proof LPG Gas Leak Detector-CI1100
₹ 17,700.00 GST included
Next product
Crimscent Flame Proof LPG Gas Leak Detector-CI2200
₹ 14,573.00 GST included

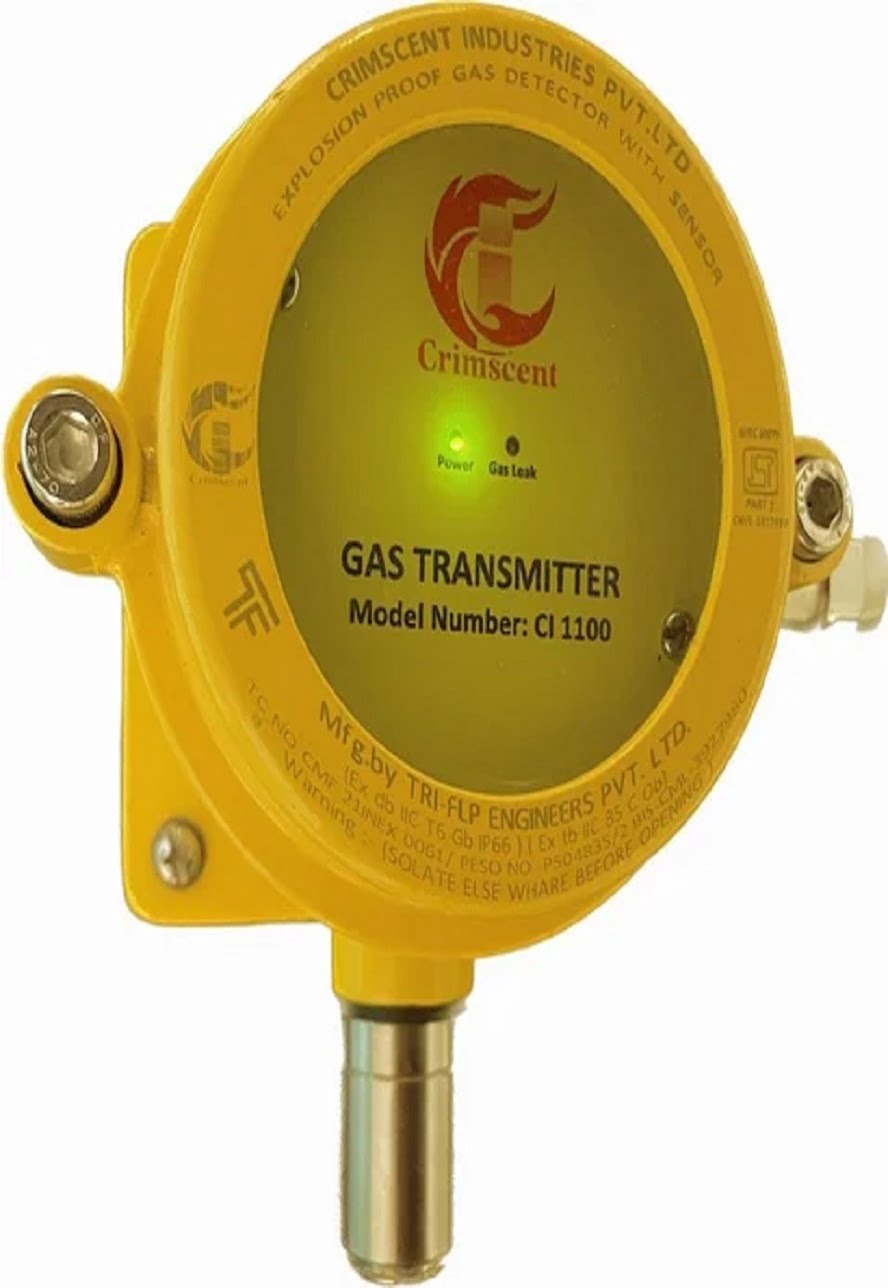

Crimscent Flame Proof PNG Gas Leak Detector-CI1100
₹ 17,700.00 GST included
12 VDC/VAC or 24 VDC/VAC Operation. Self-Purging semiconductor Sensor requires no maintenance or recalibration. SPDT (Form C) Alarm Relay and SPST (Form A) trouble relay designed for seamless connection to Control Panels or other Devices. Installer selectable self-Restoring or Latching functionality. Red and Green LED status Indicators.
In stock
Description
Crimscent Flame Proof PNG Gas Leak Detector-CI1100 Detects the presence of Combustible Gases such as Propane and Natural Gas (Methane). It is rated by CMRI/CCOE to alarm above 10% of the lower explosion level (LEL) of Propane or Methane. Use in non-hazardous locations such as Residences, Retail Stores, Office Buildings, and Institutional Buildings. It is usually installed in rooms where gas applicances are located or in rooms that are susceptible to gas seepage. Notice : Do not use in Temperature Below -10 degree C. The CI-1100 does not detect Carbon Monoxide.
Features
- 12 VDC/VAC or 24 VDC/VAC Operation
- Self-Purging semiconductor Sensor requires no maintenance or recalibration
- SPDT (Form C) Alarm Relay and SPST (Form A) trouble relay designed for seamless connection to Control Panels or other Devices
- Installer selectable self-Restoring or Latching functionality
- Red and Green LED status Indicators
Specifications
- Brand : Crimscent
- Color : Yellow
- Dimensions (HxWxD) : 120mmx90mmx90mm
- Current - Alarm : At 12VDC :70mA, At 24VDC:35mA. At 12VAC : 100mA, At 24VAC : 65mA. Standby : At 12VDC :45mA, At 24VDC:22mA. At 12VAC : 65mA, At 24VAC : 45mA.
- Voltage : VDC Input : 12VDC to 24 VDC. VAC Input : 12VAC to 24 VAC. 50Hz or 60Hz
- Temperature (Operating) : 10 degree C to 55 degree C
- Alarm Type : Buzzer
- Pump : No
- Material : Aluminium Die Casting
- Country of Origin : Made in India
