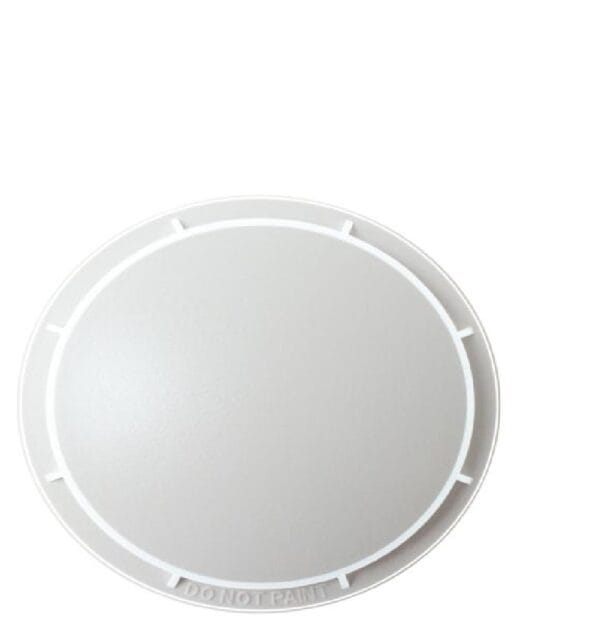

Simplex 4098-9714 photoelectric Smoke Detector
₹ 3,386.60 GST included
The sensor head design provides 360° smoke entry for optimum response to smoke from any direction. Due to its photoelectric operation, air velocity is not normally a factor, except for impact on area smoke flow.
Description
TrueAlarm photoelectric sensors use a stable, pulsed LED light source and a silicon photodiode receiver to deliver consistent and accurate low power smoke sensing. Three user selectable sensitivities for special applications are available for each individual sensor, 0.2%, 0.5%, and 1% per foot. Standard sensitivity is 1.25% to 3.1% per foot. The fire alarm control panel runs an algorithm that can vary the sensitivity for normal applications between 1.25% and 3.1% per foot.
Note: Fixed sensitivity settings higher than 1.0% per foot are not UL268 7th Edition compliant.
The sensor head design provides 360° smoke entry for optimum response to smoke from any direction. Due to its photoelectric operation, air velocity is not normally a factor, except for impact on area smoke flow.
Features
- Sealed against rear air flow entry
- Interchangeable mounting
- EMI/RFI shielded electronics
- Photoelectric technology sensing
- 360° smoke entry for optimum response
- Built-in insect screens
- Protocol IDNet, MAPNET II
- Voltage 24 VDC
- Voltage Range 18 – 32 VDC
Specifications
- Brand Simplex
- Unit of Measurement EA (Each)
- Type Detector
- Style Plug-In
- Detectable Medium Smoke
- Detection Method Photoelectric
- Programming Set via Base
