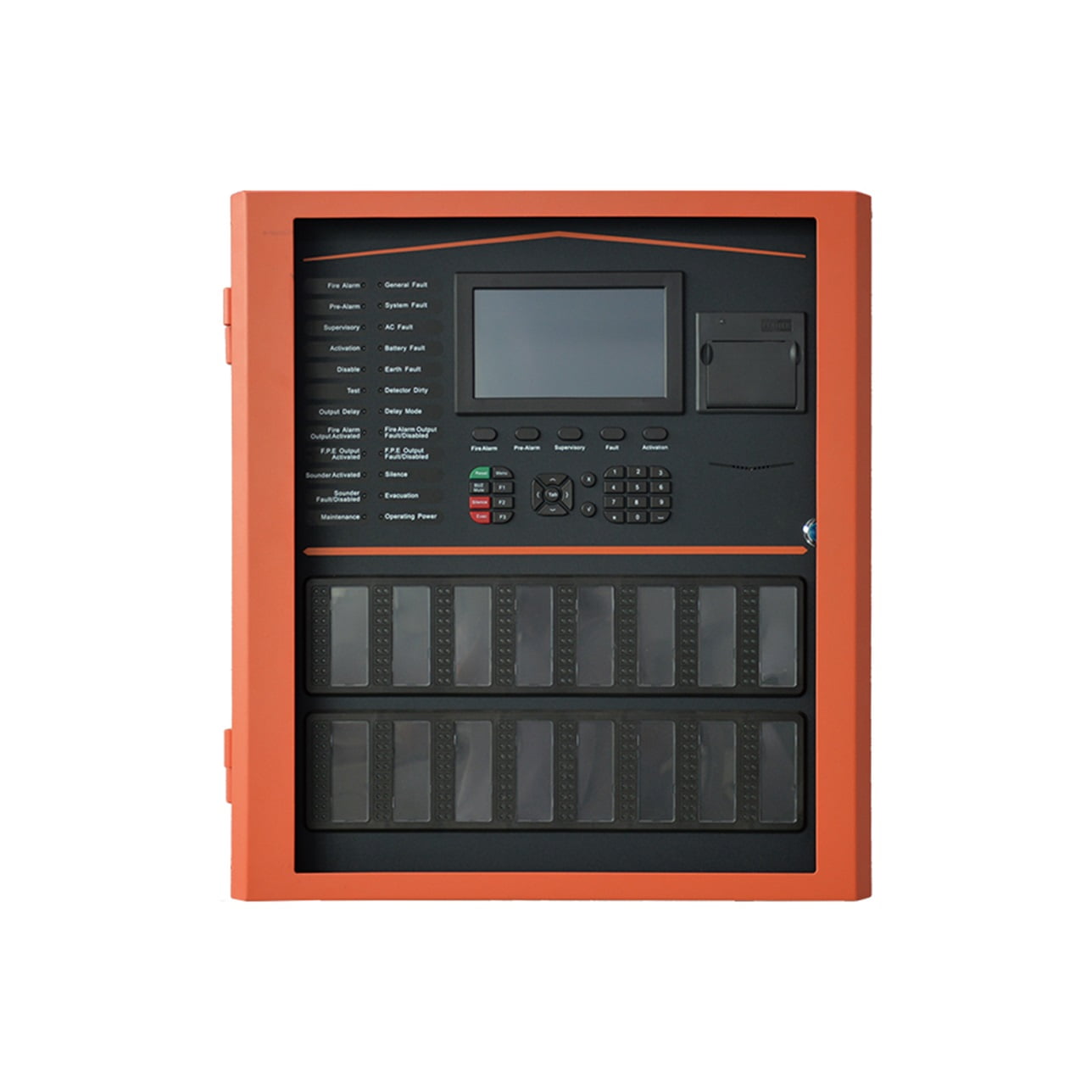

TNA Intelligent Addressable Fire Alarm Control Panel
₹ 50,976.00 GST included
2 loop, 4 loop Panel, (6 loop standalone). Support 254 Devices (1,524 ideal). Network up to 512 Node. Programmable Capacity. Zones up to 3000. Sounders Groups 1-1000. Modules Groups 1001- 2000. Built-in 160 LED Zones Indicator.
In stock
Product Code : FSIN00001796
Brand: TNA
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
TNA Intelligent Addressable Fire Alarm Control Panel-TX7004 comprise of a range of analogue addressable, microprocessor-based fire alarm control equipment to offer flexibility in both design and operation. The System is modular concept for easy tailoring of system design, to meet the full requirements of the project. The TX7004 Intelligent
Fire Alarm Control Panel is designed and manufactured to meet the requirement of BS EN54 Part 2&4. The TX7004 is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke
spread. Simultaneously, the TX7004 will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gas shut off & damper control, as per the cause and effects
requirements configured though Command Builder Set-up.
Features
- 2 loop, 4 loop Panel, (6 loop standalone)
- Support 254 Devices (1,524 ideal)
- Network up to 512 Node
- Programmable Capacity
- Zones up to 3000
- Sounders Groups 1-1000
- Modules Groups 1001- 2000
- Built-in 160 LED Zones Indicator
Specifications
- Brand : TNA
- Input Voltage : 240VAC Plus10%v Minus15%, 50/60Hz
- Input Current Consumption : 1 A`
- Batteries : 2 x 12V / 28AH`
- PSU Output to CIE : 24.5 to 28.5 VDC
- Memory [Non Volatile] : 1000 Fire Events, 10,000 General Event
- Zones : 3,000 programmable
- Indicator : 24 LED Status/ 160 Zone Indicators
- Display : 7 inch TFT Touch Screen
- Keypad : 5 Brigade buttons and Programming Keypad
