TOA MP-16 16 Channel Audio Monitor Panel for PA Network Control & System Integration
₹ 230,100.00 GST included
16 Channels Audio Monitoring. Visual Monitoring with 12-segments LED meters. Aural monitoring by Built-in Speaker and optional Headphones. A Variety of input capacity: line level, low-z speaker lines and 25/70/100V hi-z Speaker Lines. EIA Standard Rack mounting (2 unit size). Dedicated AC Adapter Input and Direct DC24V Input Terminal.
In stock
Description

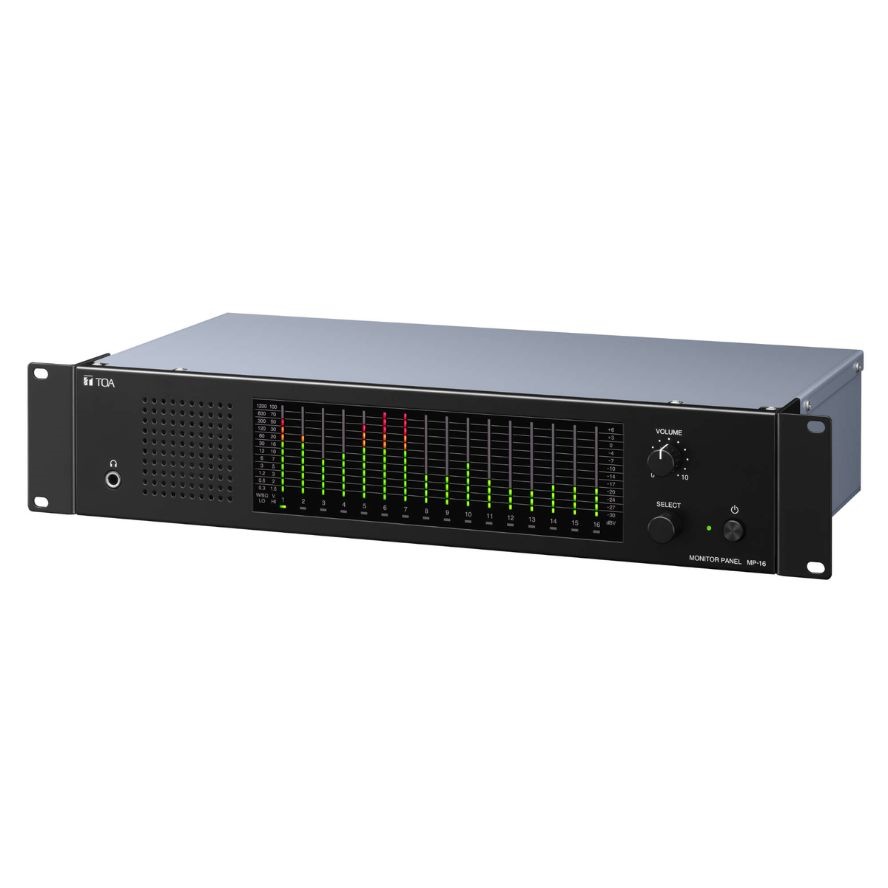

TOA 16 Channel Audio Monitor Panel, MP-16 is a 16-Channel Audio Monitor Panel, which can be mounted on an EIA Standard Equipment rack (2 unit size). It allows Monitoring 25/70/100 V High Impedance Speaker line, Low impedance speaker line and line level audio signals by LED level Meters. One of the 16 Channels Audio can be monitored with a Built-in speaker or an Optional Headphone.
Features
- 16 Channels Audio Monitoring
- Visual Monitoring with 12-segments LED meters
- Aural monitoring by Built-in Speaker and optional Headphones
- A Variety of input capacity: line level, low-z speaker lines and 25/70/100V hi-z Speaker Lines
- EIA Standard Rack mounting (2 unit size)
- Dedicated AC Adapter Input and Direct DC24V Input Terminal
Specifications
- Brand : TOA
- Power Source : Supplied from an external 24 V DC (20-33 V) power supply, Removable terminal block (2 pins) or AC adapter AD-246 (option)
- Current Consumption : 520 mA (max.)
- Input : High impedance speaker: Max. 100 V, Low impedance speaker: Max. 1200 W (8 Ω) Line: plus 6 dB (1)
- Output : Speaker Output: Max. 3 W Headphone Output: 8 ohm
- Operating Humidity : 90 percent RH or less (no condensation)
- Finish : Panel: Pre-coated steel plate, black, 30 % gloss Case: Surface-treated steel plate
- Dimensions : 482 (W) x 88.4 (H) x 240.8 (D) mm (18.98 inch x 3.48 inch x 9.48 inch)
- Weight : 3.9 kg (8.6 lb)
- Included Accessories : Removable terminal plug (10 pins, input terminal) x 8, Removable terminal plug (2 pins, power supply) x 1, Rack mounting screw x 4
- Optional Accessories : AC adapter: AD-246
