TOA Monitor panel, MP-032B
₹ 34,987.00 GST included
Passive Monitor Panel for Speaker line level
Monitors up to 10 Separate Channels or 10 Amplifiers. Large Easy-to-read watt Meter for adjusting output level. Additional Audio Monitoring with built-in 5 inch full range Speaker.
In stock
Description

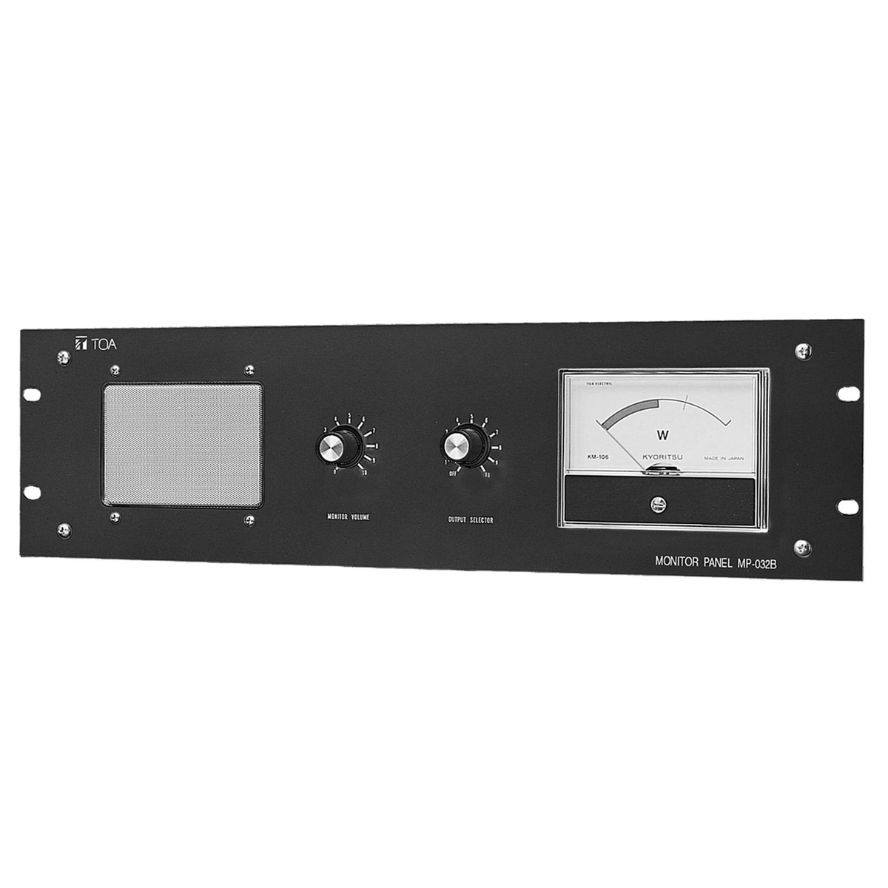

TOA Monitor panel, MP-032B is a Monitor Panel that is Designed to Provide Aural and Visual monitoring for Multi-channel Sound and Program System.
Features
- Passive Monitor Panel for Speaker line level
- Monitors up to 10 Separate Channels or 10 Amplifiers
- Large Easy-to-read watt Meter for adjusting output level
- Additional Audio Monitoring with built-in 5 inch full range Speaker
Specifications
- Brand : TOA
- Functions : Aural/visual monitoring (up to 10 power amplifiers)
- Input : 25 V (625 ohm), 50 V (2.5 kohm), 70 V (5 kohm), 100 V (10 kohm), switchable
- Monitor Speaker : Full-range 12 cm speaker
- Control : Channel selector switch Monitor volume control Watt meter Line voltage selector switch
- Terminal : M4 screw terminals, distance between barriers: 8.8 mm
- Finish : Surface-treated steel plate, black
- Dimensions : 483(W) x 133(H) x 87(D) mm
- Weight : 2.2 kg
- Included Accessories : Rack mounting screw (with washer) x 4
