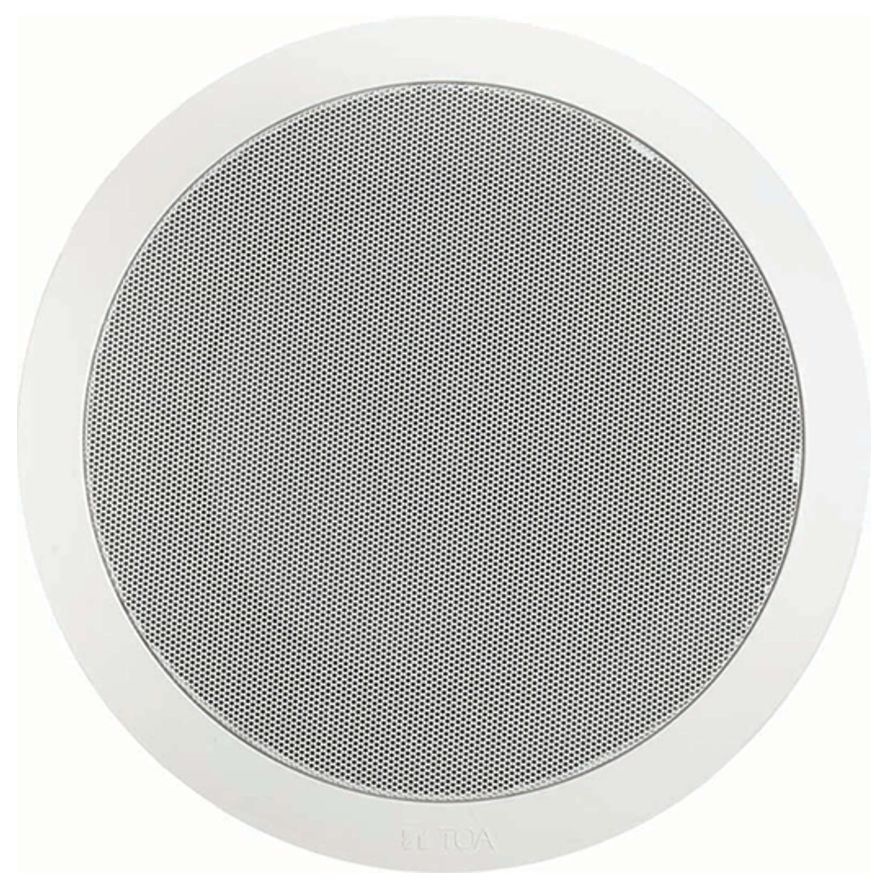

TOA PC-668R-AS Ceiling Speaker for Public Address & Voice Evacuation Systems

Name: TOA PC-668R-AS Ceiling Speaker for Public Address &amp; Voice Evacuation Systems
SKU: FSIN0000362118
Price: 8024.00 INR
Availability: InStock

See all products from toa

₹ 8,024.00 GST included

Spring Clamp Mechanism for easy Speaker Mounting to the Ceiling. 15 W, 8 inch Double cone-type. High Cost Performance. New Color Code: RAL 9016. PP Resin, SECC Punching net.

In stock

Compare

Product Code : FSIN0000362118 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Ceiling Speaker, PC-668R-AS is a Ceiling Speaker with Integrated Resin Panel and Speaker frame. It feature spring clamp mechanism for easy speaker mounting to ceiling. The slim speaker frame design allows it to blend into the interior design of the application easily. Input impedance can be easily adjusted by changing the tap of the transformer. PC-668RC, comes with input terminal block which makes cable connection easy when bridging wires.

Features

Spring Clamp Mechanism for easy Speaker Mounting to the Ceiling
15W, 8 inch Double cone-type
High Cost Performance
New Color Code: RAL 9016
PP Resin, SECC Punching net

Specifications

Brand : TOA
Rated Input : 15 W (100 V, 70 V Line)
Rated Impedance : 100 V Line: 670 ohm (15 W), 1 kohm (10 W), 2 kohm (5 W), 3.3 kohm (3 W), 70 V Line: 330 ohm (15 W), 670 ohm (7.5 W), 1 kohm (5 W), 2 kohm (2.5 W), 3.3 kohm (1.5 W)
Sensitivity (1W, 1m) : 96 dB (Pink Noise 500 Hz- 5 kHz)
Frequency Response : 65 Hz - 20 kHz (at 20 dB below peak SPL)
Speaker Component : 20 cm (8 inch) double cone-type
Dimensions for Fixing Hole - Mounting hole : Ø 250 plus or minus 5mm (Ø 9.84inch plus or minus 0.2 inch), Ceiling thickness 5-25 mm (0.20 inch - 1.98 inch)
Input Connector : Push-In Connector (Bridging and branch connection possible)
Finish - Panel: Polypropylene resin, traffic-white (RAL 9016 or equivalent color), Grille: Surface-treated Steel Plate Net, traffic-white (RAL 9016 or equivalent color), paint
Dimensions : Ø 280 x 90 (D) mm (Ø 11.02 inch x 3.54 inch)
Weight : 970 g (2.14 lb)
Included Accessories : Paper pattern x 1
