TOA D-2000AD1 Mic/ Line Input Module – Monaural Type for Public Address & Paging Systems
₹ 113,280.00 GST included
Next product

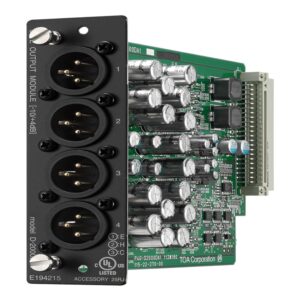

TOA D-2000DA1 Line Output Module for PA Network Control & System Integration
₹ 105,020.00 GST included
TOA D-2000CB CobraNet Interface Module for PA Network Control & System Integration
₹ 154,580.00 GST included
Designed for use with the D-2008SP Digital Mixing Processor Unit. Allows Audio Transmission among D-2008SP. Developed by Cirrus Logic, US Company.
In stock
Description

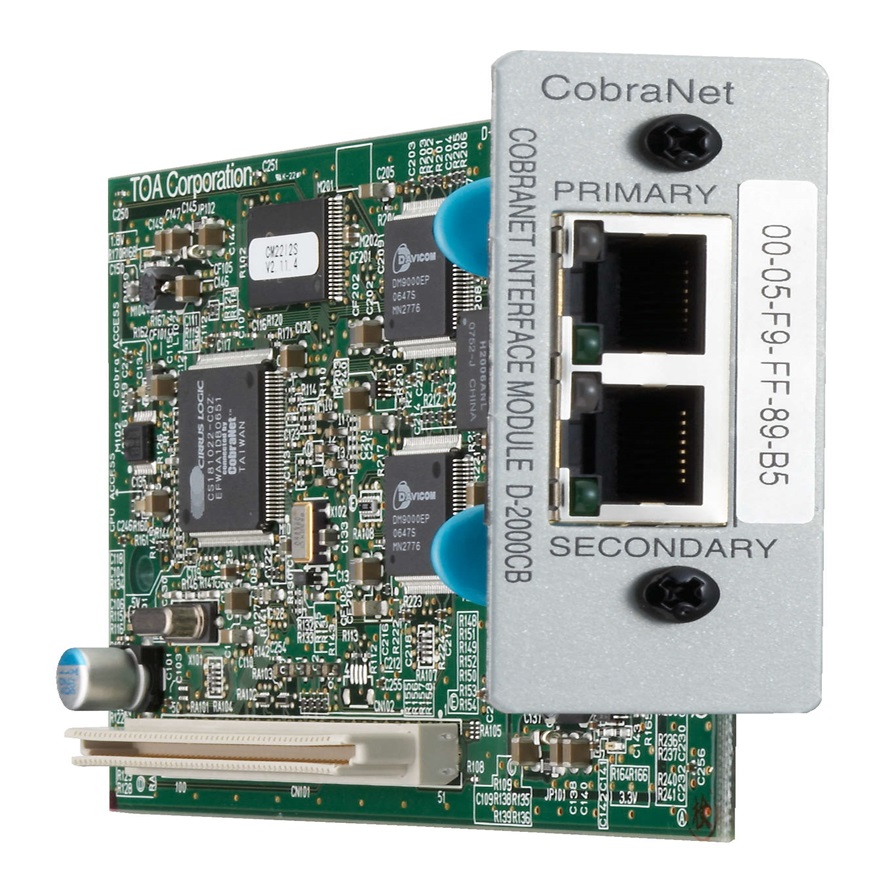

TOA CobraNet Interface Module, D-2000CB is Designed for use with the D-2008SP Digital Mixing Processor Unit. When Mounted to the D-2008SP, it allows Audio Transmission between this D-2008SP and other one. Each Function is set by the Dedicated Setting Software on a PC. Allows Audio Transmission Among D-2008SPs. (CobraNet was Developed by Cirrus Logic, a US company and is a Network Protocol utilizing Ethernet Networks to perform High-quality Multi-channel Digital Transmission. It allows using existing Ethernet equipment such as CAT-5 switching hubs
Features
- Designed for use with the D-2008SP Digital Mixing Processor Unit
- Allows Audio Transmission among D-2008SP
- Developed by Cirrus Logic, US Company
Specifications
- Brand : TOA
- Input : 16 channels, 20 bit/ 24 bit
- Output : 16 channels, 20 bit/24 bit
- Sampling Frequency : 48 kHz
- Network I/F CobraNet: 100BASE-TX, PRIMARY/ SECONDARY 2 system, RJ45 connector, Enables decentralized installation, Audio transmission only Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable, To be connected via the specified switching hub, Note: This network should be completely independent of other LAN. Number of D-2008SP connection: Max. 4, Switching hub stage: Max. 7, Max extend distance: 100m (328.1 ft) (connected via a switching hub)
- Finish : Panel: Pre-coated steel plate
- Dimensions : 25.5 (W) x 82.5 (H) x 144 (D) mm (1 inch x 3.25 inch x 5.67 inch) (excluding projection)
- Weight : 100 g (0.22 lb)
- Included Accessories : Screw …1
