TOA D-2000AD1 Mic/ Line Input Module – Monaural Type for Public Address & Paging Systems

Name: TOA D-2000AD1 Mic/ Line Input Module – Monaural Type for Public Address &amp; Paging Systems
SKU: FSIN0000361796
Price: 113280.00 INR
Availability: InStock

See all products from toa

₹ 113,280.00 GST included

4-channel, XLR Connectors. A/D Converter: 24 Bit. Phantom Power Supply (48 V). Distortion: 0.008 Percent or Less.

In stock

Compare

Product Code : FSIN0000361796 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

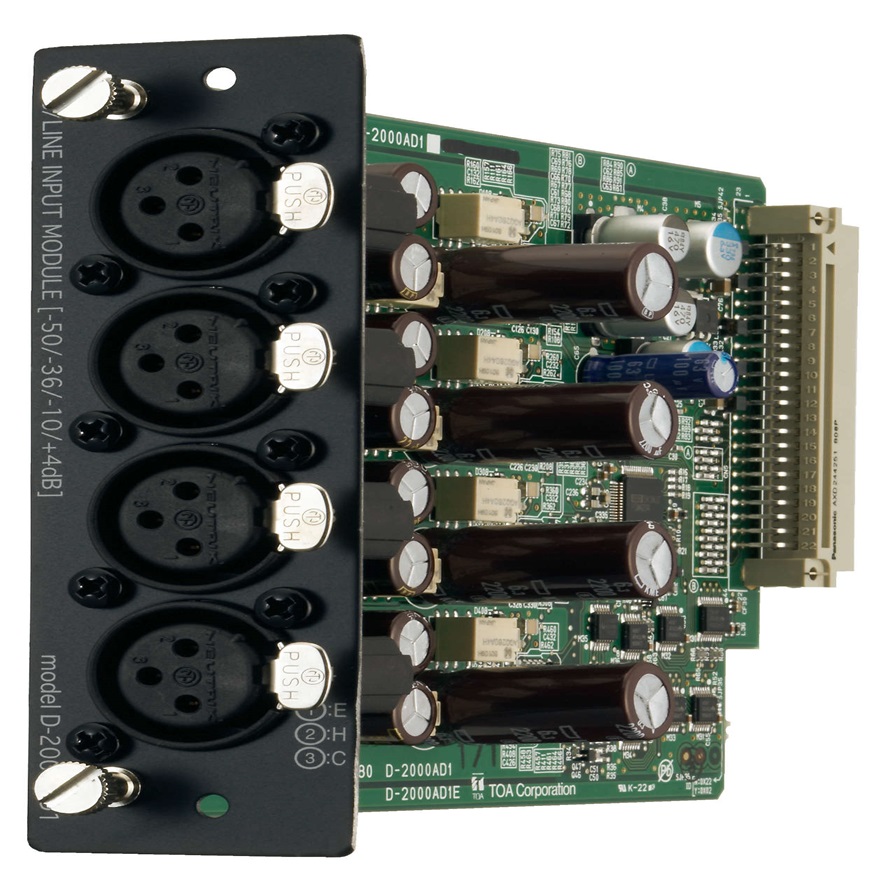

TOA Mic/ Line Input Module (Monaural Type), D-2000AD1 is a 4-Channel Microphone/Line Input Module Designed for use with the D-2008SP Digital Mixing Processor Unit. It Employs XLR Type Connectors.

Features

4-channel, XLR Connectors
A/D Converter: 24 Bit. Phantom Power Supply (48 V)
Distortion: 0.008 Percent or Less

Specifications

Brand : TOA
Input : 4 Channels, Mic/Line Selectable, Mic: -50/ -36 dB, 2.6 kohm, Electronically-Balanced, Line: -10 dB, 2.6 kohm/ Plus 4 dB, 7 kohm, Electronically-balanced, Connector: XLR-3-31 Equivalent, Phantom power supply (48 V DC, can be used when set for the Mic) Ground lift switch
A/D Converter : 24 bit
Sampling Frequency : 48 kHz
Frequency Response : 20 Hz - 20 kHz, Plus or Minus 1 dB (plus 4 dB input)
Dynamic Range : 104 dB (IHF-A weighted) or more (plus 4 dB input)
Total Harmonic Distortion : 0.008 percent or less (plus 4 dB input)
Finish : Panel : Pre-coated steel plate, black, 30 percent gloss
Dimensions : 35 (W) x 119.5 (H) x 178.4 (D) mm (1.38 inch x 4.7 inch x 7.02 inch)
Weight : 200 g (0.44 lb)
