TOA Control Panel, VX-3000CT
₹ 77,644.00 GST included
Designed for Exclusive use with the VX-3000 Series Evacuation System. Equipped with 9 Function Keys and 8 Volume Controls. Up to 2 Units can be Connected to a single VX-3000 Frame. Maximum of 80 units can be Configured per System. Can be Mounted in a EIA equipment Rack (1U size).
In stock
Description

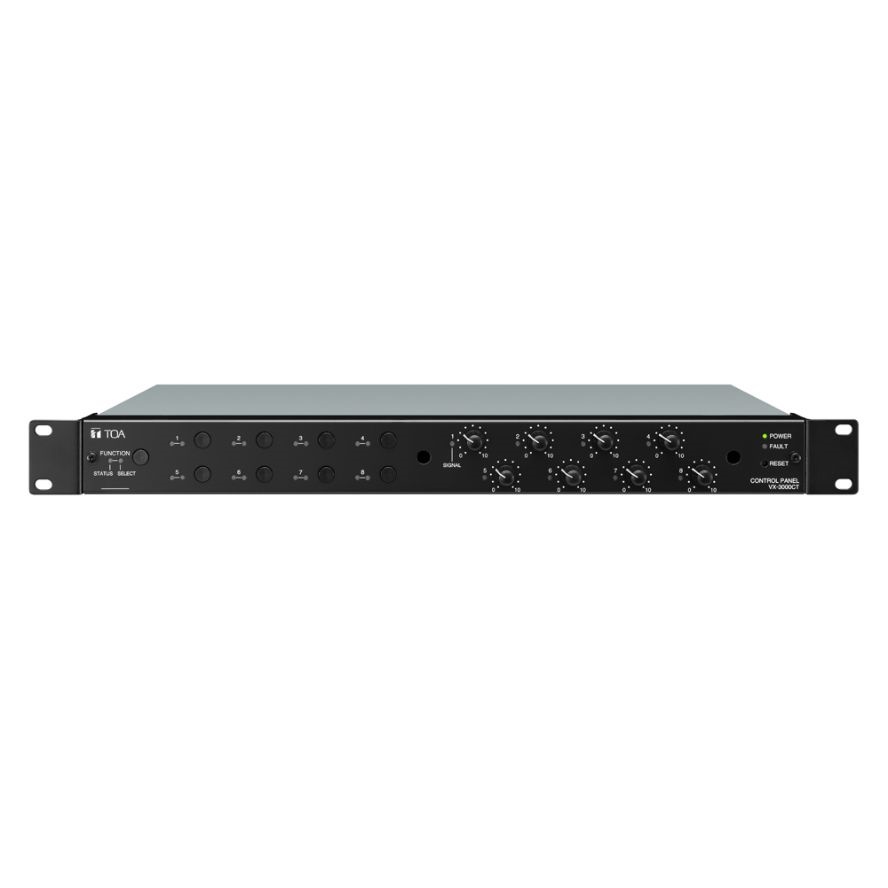

TOA Control Panel, VX-3000CT is an Operation Panel Designed for exclusive use with the VX-3000 Series Evacuation System. Operation such as the activation of general broadcast and the input/output volume control can be performed by connecting the VX-3000CT to the VX-3000 Frame via network. It is equipped with 9 function keys and 8 volume controls. Up to 2 units can be connected to a single VX-3000 Frame, and a maximum of 80 units can be configured per system. It can be mounted in a EIA equipment rack (1U size).
Features
- Designed for Exclusive use with the VX-3000 Series Evacuation System.
- Equipped with 9 Function Keys and 8 Volume Controls
- Up to 2 Units can be Connected to a single VX-3000 Frame
- Maximum of 80 units can be Configured per System
- Can be Mounted in a EIA equipment Rack (1U size)
Specifications
- Brand : TOA
- Power Source : 20-33 V DC, removable terminal block (4 pins)
- Current Consumption : 0.09 A at 33 V DC input 0.11 A at 24 V DC input
- Indicators : POWER (Green) x 1, RUN (Green) x 1, LINK/ACT (Green) x 2, SIGNAL (Green) x 8, FAULT (Yellow) x 1, STATUS (Green/Yellow) x 9, SELECT (Green) x 9
- Volume Control : 8 channels
- Operation : Function key x 9, Reset key x 1, IP Address setting switch x 1
- Operating Temperature : 0 deg.C to plus 40 deg.C
- Operating Humidity : 90 percent RH or less (no condensation)
- Finish - Panel: Surface-treated steel plate, black, 30 percent gloss, paint, Volume Control Section Cover: ABS resin, gray smoke
- Dimensions : (W x H x D) 482 x 44 x 315.2 mm Weight 3 kg
- Accessory : Rack mounting screw x 4, Removable terminal plug (4 pins) x 1
