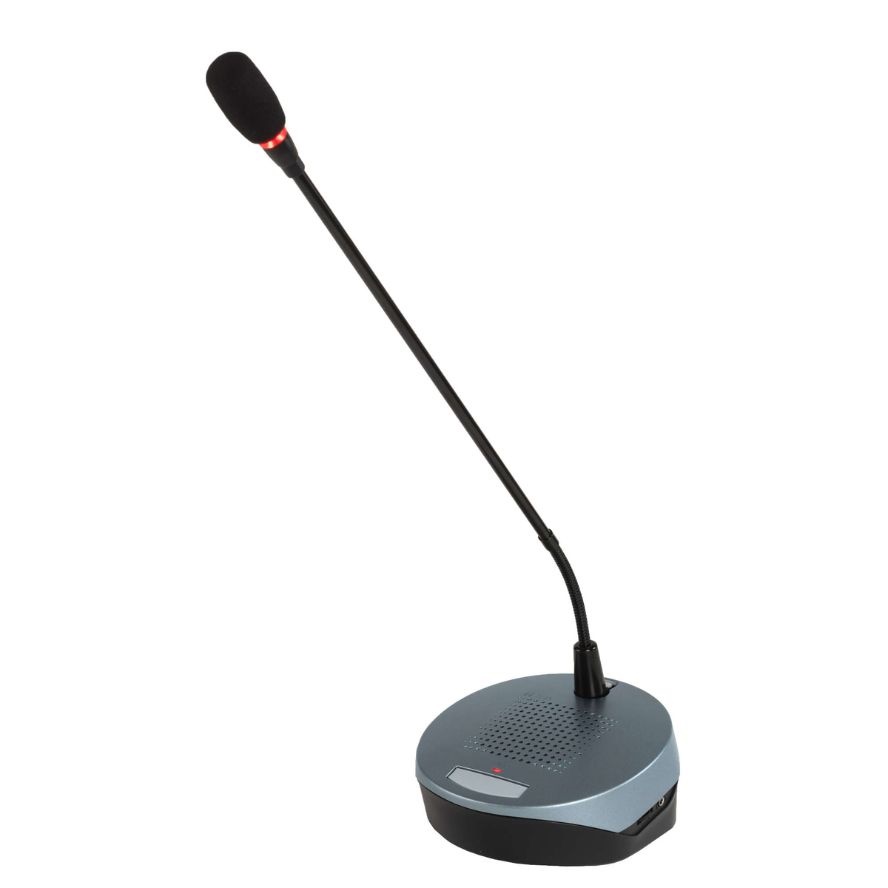

TOA Delegate Unit with Long Microphone, TS-692L-AS
₹ 19,057.00 GST included
Compact and Lightweight Design. Easy to Install and Store. Comes with a Long Microphone as Standard Accessory.
In stock
Description
TOA Delegate Unit with Long Microphone, TS-692L-AS is for TOA Conference system, which is Compact and Lightweight Design makes it easy to Install and Store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on, allowing the voices from other conference units to be monitored. The TS-692L-AS delegate unit come with a long microphone as standard accessory.
Features
- Compact and Lightweight Design
- Easy to Install and Store
- Comes with a Long Microphone as Standard Accessory
Specifications
- Brand : TOA
- Power Source : 36 V DC, 30 mA or less (supplied from the Central Unit TS-690)
- Output : Headphone/ Recording: 3.5 mm, mini jack (3P: monaural), Internal speaker: 130 ohm, 200 mW
- Control - Speech: Microphone, speaker on-off control by speech button, Priority: Microphone, speaker on-off, other microphone cut-off, and single-tone chime activation by priority button, Volume control: Headphone/Recording and internal speaker volume adjustable
- Microphone Unit (Accessory) - Electret Condenser Microphone Directivity: Unidirectional, Impedance: 1.8kohm, Sensitivity: minus 37dB (1kHz 0dB = 1V/Pa), Frequency Response: 100Hz - 13 kHz, Length: 518 mm, Weight: 105g (0.23 lb)
- Operating Temperature : 0 Deg. C to plus 40 Deg. C (32 Deg. F to 104 Deg. F)
- Finish - Upper case: ABS resin, metallic grey, paint, Lower case: ABS resin, black
- Dimensions : 145.3 (W) × 70.7 (H) × 150.5 (D) mm (Excluding Microphone Unit)
- Weight : 800 g (1.76 lb) (Excluding Microphone Unit)
- Included Accessories : Long Microphone Unit x 1
- Optional Accessories : Extension cord: YR-780-2M, YR-780-10M
