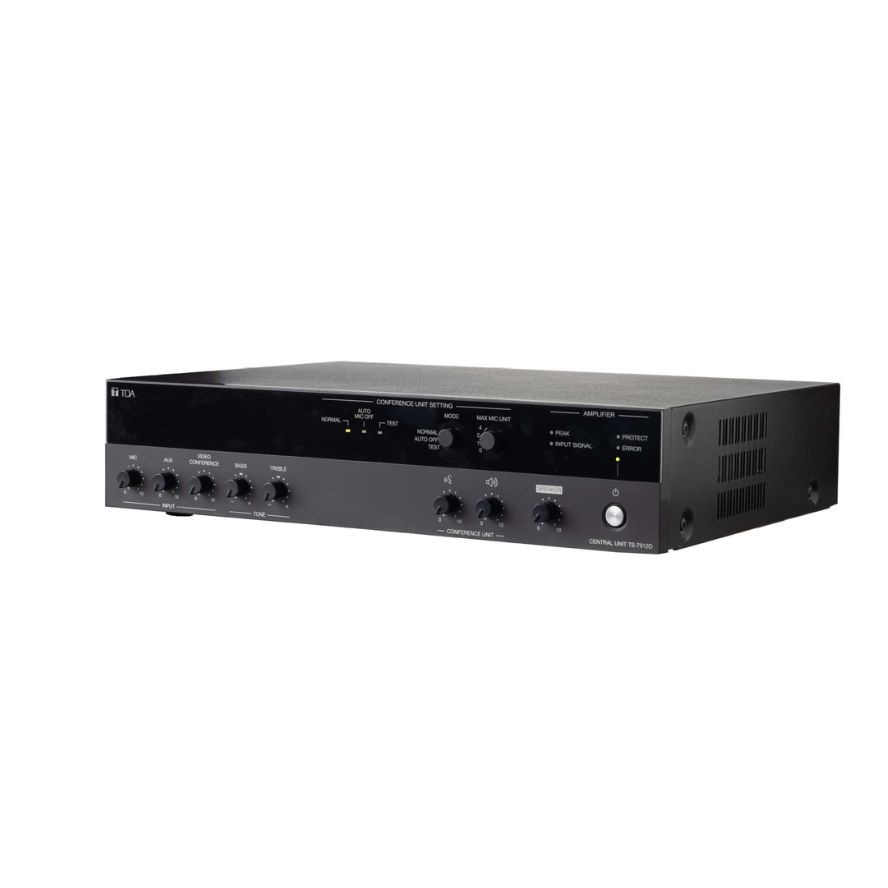

TOA TS-7912D-AS Central Unit for PA Network Control & System Integration

Name: TOA TS-7912D-AS Central Unit for PA Network Control &amp; System Integration
SKU: FSIN0000362261
Price: 228920.00 INR
Availability: InStock

See all products from toa

₹ 228,920.00 GST included

For TOA Conference System. Built-in 120W Power Amplifier for External Speaker. Equipped with Video Conference connection Terminals such as USB Port or RCA Jack. Equipped with Equalizer Connection Terminals to Connect an Equalizer. Mounted in an EIA Standard Equipment Rack (2 unit size).

In stock

Compare

Product Code : FSIN0000362261 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Central Unit, TS-7912D-AS is for TOA Conference System. It has Built-in 120W Power Amplifier for external speaker. With the use of its Line Connection Terminals permits connections to the Conference units of TS-791L and TS-792L, making up a conference system. Each operation of Conference units and Power amplifier has its own power supply. The TS-7912D is equipped with Video conference connection terminals such as USB port or RCA jack. It is also equipped with Equalizer connection terminals to connect an equalizer or other signal processor. With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (2 unit size).

Features

For TOA Conference System
Built-in 120W Power Amplifier for External Speaker
Equipped with Video Conference connection Terminals such as USB Port or RCA Jack
Equipped with Equalizer Connection Terminals to Connect an Equalizer
Mounted in an EIA Standard Equipment Rack (2 unit size)

Specifications

Brand : TOA
Power Source : 100 - 240 V AC, 50/60 Hz
Power Consumption : 230 W (rated output, 64 units), 81 W (1/8 of rated output, 64 units)
Current Consumption : 200 mA or less (when power switch is OFF)
Frequency Response : 20 Hz to 20 kHz plus or minus 3 dB
Distortion : 1 percent or less at 1 kHz (20 kHz LPF (AUX-0025)
Tone Control : Bass: plus or minus 10 dB at 100 Hz, Treble: plus or minus 10 dB at 10 kHz (Speaker Out)
Number of Connectable Conference Units : Max. 64 units
LED Indicator : Power (Green) Amplifier: INPUT SIGNAL (Green), PEAK (Red), PROTECT (Red), ERROR (Red) Conference Unit Setting: NORMAL (Green), AUTO MIC OFF (Green), TEST (Red)
Chairman/ Delegate Units Terminal : LINE 1, 2: 8 pin DIN Socket
Finish - Panel: ABS resin, Black Case: Surface-treated Steel plate, Black, Paint
Dimensions : 420(W) x 96.1 (H) x 313.1(D) mm
