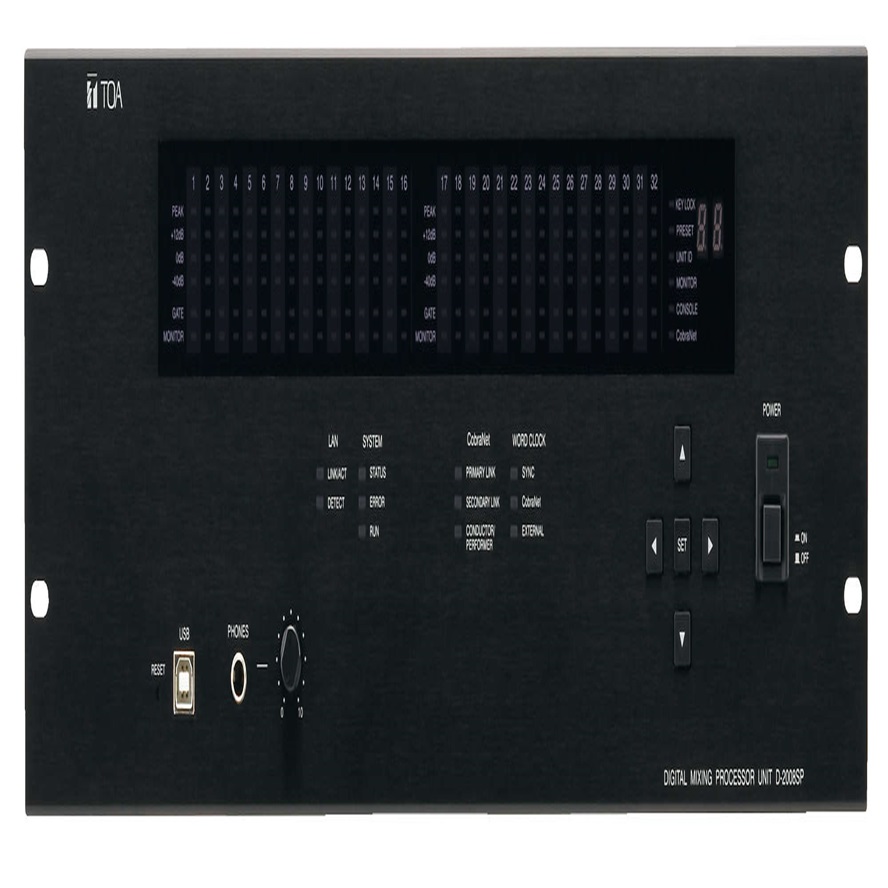

TOA D-2008SP Digital Mixing Processor Unit for PA Network Control & System Integration

TOA Digital Mixing Processor Unit, D-2008SP is Designed to have up to 32 Audio Inputs and Outputs in Total, and to be Mounted in an EIA Standard Equipment Rack (3U size). A Built-in Powerful signal processing function permits the unit to be used as both a Mixer and a Signal Processor. Its Audio Input/ output and control ports can accept optional Plug-in modules, making the unit have a maximum of 32 inputs or 32 outputs and up to 2 Control Modules. Using the following optional modules enables the unit to perform their functions: Two D-983s for providing a Maximum of 48 contact inputs and 32 contact outputs, D-984VC for VCA control, and D-2000CB for audio data transfer between multiple D-2008SP units. Each function is set by the dedicated setting software on a PC. Setting contents can be stored in the unit’s internal memory as preset memory, which can be recalled by the D-2008SP without using a PC. The D-2012C, when connected, remotely controls the D-2008SP’s basic operations such as volume control.
