Installation And Service Chargers
₹ 16,963.68 GST included
Description

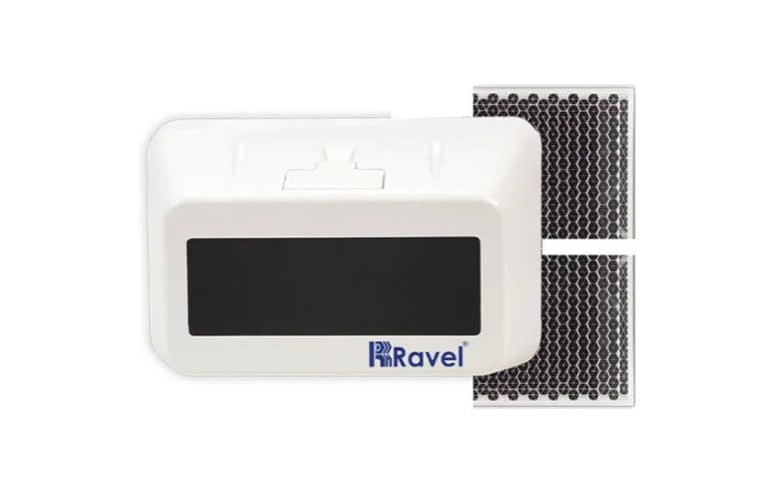

TheRE-428 Series beam smoke detector is designed for smoke detection at the start of a fire. It is especiallysuitable for protection of indoor spaces, in which the appearance of smoke is likely during ignition of a fire, andwhere, due to a large space area, installation of a greater number of point smoke detectors would benecessary.The RE-428 Series beam smoke detector and the prism reflector or reflector panel are installed on opposite,walls of a room.Special adjusting screws are provided at the detector and the reflector panel for precise alignment of the detector
and the reflector/s in the optical path. A special laser target viewfinder is actuated at the moment when the optical beam path is aligned.The RE-428 Seriesdetector consists of an infrared (IR) light transmitter and a receiver located in a single housing
and an interoperating prism reflector
Features
- User Friendly Installatio
- In built laser light for easy alignment
- Supports 5 to100 meter range
- Option for Remote Indication
- Provision to connect with Fire Man Telephone System
- Adjusting Screws at detector for precise alignment
- Infrared transmitter & receiver located in a single housing
- In built drift compensation for monitoring dirt build up on the optical system
- Sensitivity Threshold :- 18% ,30%, 50%
Specifications
- Brand Ravel
- Operating voltage : 24V
- Quiescent current : 20 mA
- Alarm current : 60 mA
- Current at radiation beam interruption : < 0.3 mA
- Operating distance range for RE-428FR reflector : 5 to 50 m
- Operating distance range for RE-428HR reflector : 50 to 100 m
- Sensitivity thresholds (optional) : 18%, 30%, 50%
- Power supply of laser target viewfinder (during alignment) : 9 V (6F22) battery
- Operating temperature range : -25 C to 55 C
- Relative humidity : up to 95% at 40 C
- Dimensions : 128 x 79 x 84 mm
- Mass : 0.35 kg
