System Sensor – Long Range Kit for use with Reflective Projected Beam Smoke Detectors-70mtr Model no : BEAMLRK
See all products from system-sensor₹ 11,505.00 GST included
Description
The System Sensor BEAMLRK Long Range Kit is an accessory designed to extend the operating range of compatible System Sensor Reflective Projected Beam Smoke Detectors from the standard range up to 70–100 meters (230–328 ft). The kit includes three additional 8-inch × 8-inch reflectors, which are used together with the reflector supplied with the beam detector, creating a four-reflector configuration that provides sufficient reflected infrared light for reliable long-distance smoke detection. The BEAMLRK is ideal for protecting large open spaces such as warehouses, aircraft hangars, atriums, factories, gymnasiums, and exhibition halls where extended beam coverage is required. The kit is designed for easy installation and is compatible with selected System Sensor beam detectors but is not compatible with the BEAMMMK Multi-Mount Kit.
Features
- Extends beam detector operating range from 70 to 100 meters (230–328 ft)
- Designed for use with System Sensor Reflective Projected Beam Smoke Detectors
- Includes three additional 8" × 8" reflectors
- Works together with the detector's supplied reflector to form a four-reflector array
- Provides reliable reflected infrared signal over long distances
- Reflectors include test scale legends for simplified sensitivity testing
- Suitable for large open-area fire detection applications
- Quick and easy wall-mounted installation
- Rugged reflector construction for long-term performance
Specifications
- Brand System Sensor
- Model Number BEAMLRK
- Product Type Long Range Reflector Kit
- Compatible Devices System Sensor Reflective Projected Beam Smoke Detectors (e.g., BEAM1224, BEAM1224S, BEAM200 Series)
- Operating Range 70–100 m (230–328 ft)
- Reflector Size 8 in × 8 in (203 × 203 mm)
- Number of Additional Reflectors 3
- Total Reflectors Required 4 (including one supplied with the detector)

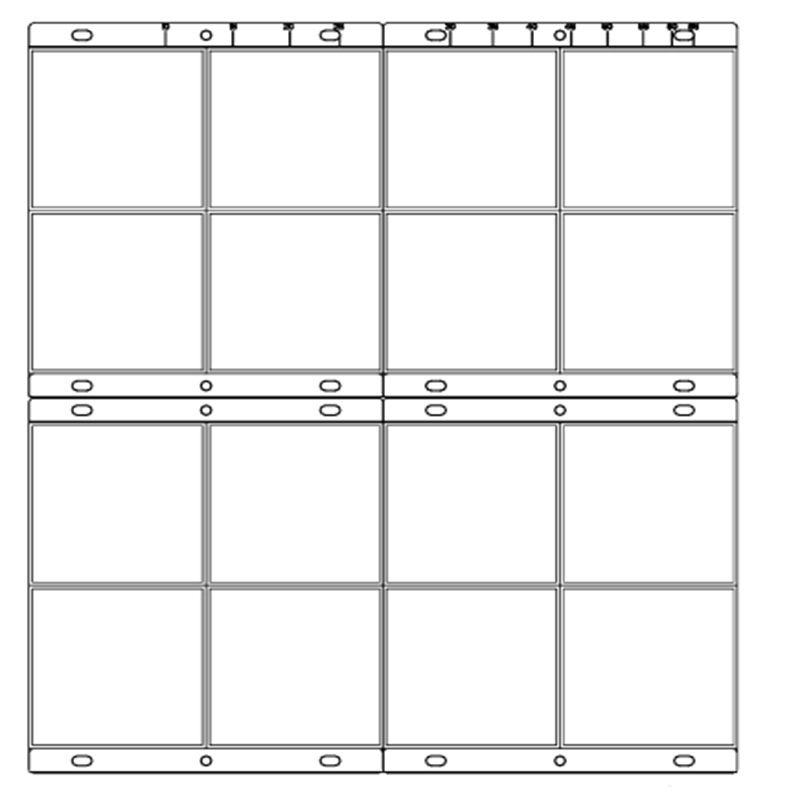

- Reflector Configuration Square arrangement
