Dahua Addressable Smoke Detector (RI Support), DHI-HY-2301B (MOQ-2Pcs)
₹ 1,534.00 GST included
Next product
Dahua Addressable Manual Call Point, DHI-HY-1200B (MOQ-2Pcs)
₹ 1,534.00 GST included
Dahua Addressable Heat Detector (RI Support), DHI-HY-2311B (MOQ-2Pcs)
₹ 1,534.00 GST included
4W-B Heat Detector, Compatible with remote Indicator. Non-loosening Screws on base Terminal for easy Installation. Contacts material is highly Acid-resistant and Rust-resistant. Designed in accordance with EN54-5 standard.
In stock
Description

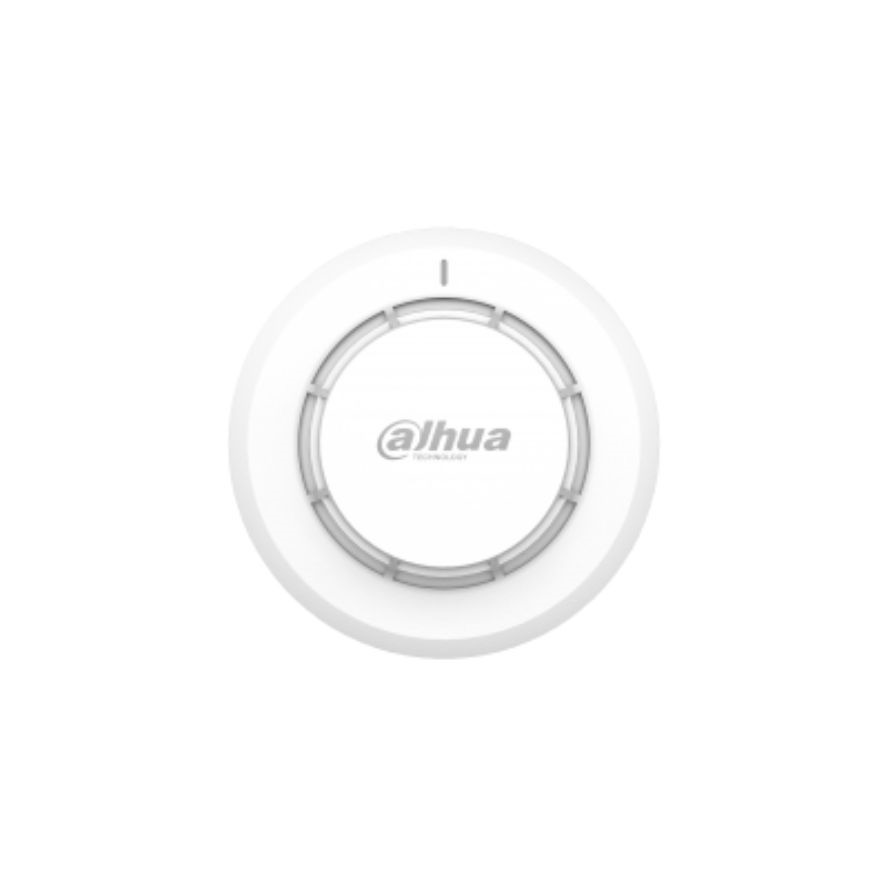

Dahua Addressable Heat Detector (RI Support), DHI-HY-2311B is a 4W-B Addressable Heat Detector that Operates
on a Polarity-free Two-wire power supply. It Primarily utilizes a thermal sensing Element to Detect Fires. During the initial stages of a Fire, a significant amount of Heat is Released, causing a Rapid increase in the Surrounding temperature. The Thermal element in the Detector undergoes a Physical change in response to Abnormal Temperature, temperature rate, and temperature differential, converting the temperature signal into an Electrical Signal to trigger an Alarm.
Features
- 4W-B Heat Detector, Compatible with remote Indicator
- Non-loosening Screws on base Terminal for easy Installation
- Contacts material is highly Acid-resistant and Rust-resistant
- Designed in accordance with EN54-5 standard
Specifications
- Brand : Daua
- Surveillance Area : For installation heights below 4 m, the coverage area is 150 m2, For installation heights between 4m and 12m, the coverage area is 80 m2
- Remote Indicator : Support
- Working Principle : Heat detection
- Alarm Mode : Indicator light alarm
- Fixed Detection Threshold : 62 Deg.C plus or minus 3 Deg.C (144 Deg.F plus or minus 37.4 Deg.F)
- Dynamic Detection : 1 to 30 K min-1
- Operating Temperature : minus 10 Deg.C to plus 50 Deg.C
- Dimensions (with base) : 100 mm × 46.3 mm ( 3.94 inch × 1.82 inch)
- Weight (with base) : 102 g (0.22 lb)
- Installation : Ceiling Mount
