Dahua Addressable Manual Call Point, DHI-HY-1200B (MOQ-2Pcs)
₹ 1,534.00 GST included
Convenient wiring: Two-wire, Polarity-free. Reliable communication: Built-in Microprocessor, Performance is Stable. Ultra-Low power Consumption: Ultra-low monitoring Current and Alarm Current. Independent output: A pair of Normally open contacts. Simple installation: With a Plug-in structure, Easy to Install and Construct. Designed in accordance with EN54-11 standard.
In stock
Description

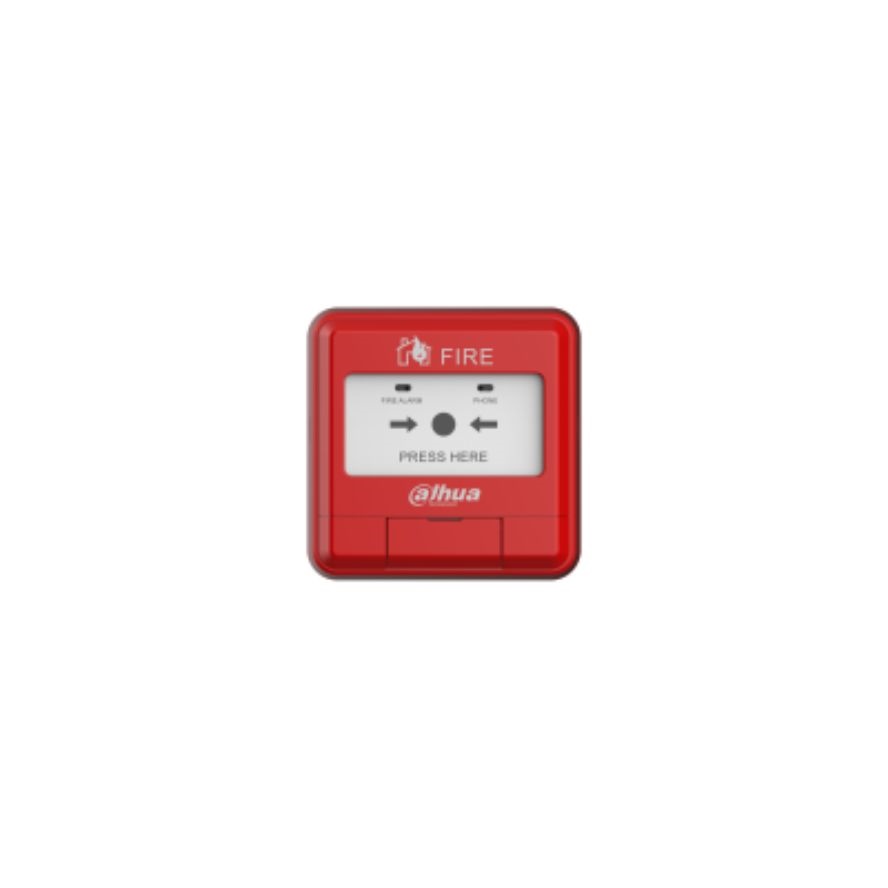

Dahua Addressable Manual Call Point, DHI-HY-1200B is a Mated Product of the Addressable Fire Alarm Control Panel, Pressing the Manual Call Point to send Alarm Signals to the Panel.
Features
- Convenient wiring: Two-wire, Polarity-free
- Reliable communication: Built-in Microprocessor, Performance is Stable
- Ultra-Low power Consumption: Ultra-low monitoring Current and Alarm Current
- Independent output: A pair of Normally open contacts
- Simple installation: With a Plug-in structure, Easy to Install and Construct
- Designed in accordance with EN54-11 standard
Specifications
- Brand : Daua
- Working Voltage : 24V DC
- Current : Monitoring current: less or equal to 350μA, Maximum operating current: less or equal to 400μA
- Indicator : Fire Alarm - Red indicator flashes slowly during polling, flashes quickly during malfunction and remains lit during alarm, Phone - Red indicator flashes during polling and communication
- Wiring : Two-wire, polarity-free
- Addressing Method : Electrical encoder
- Address Range : 1 - 254
- Color : Red
- Dimensions (with base) : 90 mm × 90 mm × 44 mm (3.54 inch × 3.54 inch × 1.73 inch)
- Weight (with base) : 136 g (0.30 lb)
- Compliance Standard : EN54-11
