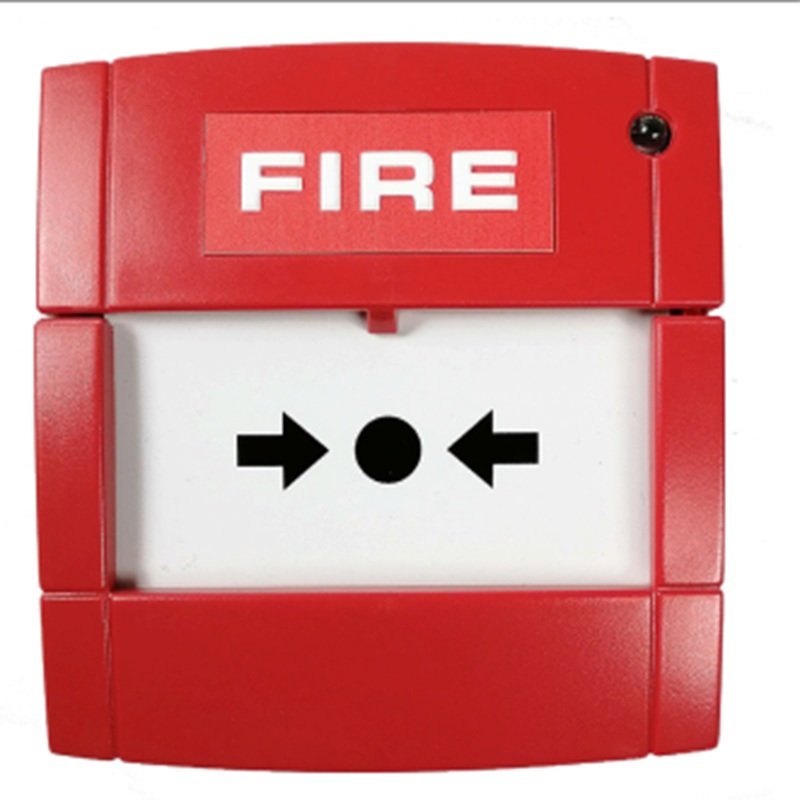

Simplex – addressable manual call point – Model : 4099-9708
See all products from simplex₹ 7,998.04 GST included
Ensure fast, reliable emergency response with the Simplex 4099-9708 Addressable Manual Call Point, engineered for modern fire alarm systems. This sleek, durable manual station allows building occupants to manually activate the fire alarm in case of emergency, instantly alerting the fire control panel and triggering appropriate evacuation procedures. Fully compatible with Simplex addressable fire alarm systems, this unit is ideal for commercial, industrial, and institutional installations.
Description
Ensure fast, reliable emergency response with the Simplex 4099-9708 Addressable Manual Call Point, engineered for modern fire alarm systems. This sleek, durable manual station allows building occupants to manually activate the fire alarm in case of emergency, instantly alerting the fire control panel and triggering appropriate evacuation procedures. Fully compatible with Simplex addressable fire alarm systems, this unit is ideal for commercial, industrial, and institutional installations.
Features
- Addressable Design – Fully integrates with Simplex addressable fire alarm control panels.
- Break Glass or Push Button Activation – Clear, intuitive manual activation method.
- Resettable with Key – Quick system reset using a Simplex test/reset key.
- LED Indicator – Built-in LED confirms communication with the control panel
- Rugged Construction – Impact-resistant red polycarbonate enclosure.
- Tamper-Proof – Key-operated for secure access and reset.
- System Integration – Supports point identification and diagnostics for precise response.
- Flush or Surface Mounting – Flexible mounting options to suit your installation needs.
Specifications
- Model Number 4099-9708
- Type Addressable Manual Call Point
- System Compatibility Simplex addressable fire alarm systems
- Activation Method Push Button / Break Glass (Resettable)
- Mounting Type Flush or Surface Mount
- Operating Voltage 24 VDC (from control panel)
- Operating Temperature 32°F to 120°F (0°C to 49°C)
- Dimensions 5.25" H x 3.25" W x 1.5" D (approx.)
