Edwards – Weatherproof and Explosionproof Manual Stations Model no : MPRS2-D45W-GE
₹ 21,936.20 GST included
Description

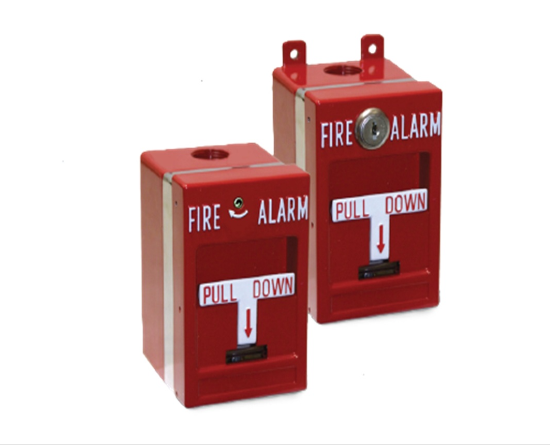

MPSR Series manual pull stations from Edwards are noncoded fire alarm stations solidly constructed of die-cast material. All
components are pre-painted or have plated surfaces to inhibit corrosion. Weatherproof manual stations are rated for outdoor use. Singleand double-action MPSR models are available with either single pole (normally open) or double pole (double throw) alarm contacts.
Depending on the model, access to the unit for resetting purposes is gained with either a keylock or hex screw. Explosionproof/weatherproof manual stations are rated for Class I Group B (hydrogen) C & D, Class II Groups E. F, G, Class III
environments, and are rated NEMA 4X for outdoor use. They are available in single or double action activation with key or hex operated
reset. All models feature terminal block connections and 10 amp contacts.
Features
- Solid corrosion-resistant construction
- Rated NEMA 4X for outdoor use
- Surface mount weatherproof backbox and gasket included
- Terminals for wire connections
- Positive activation
- Single and double action models
- Single or double pole contacts
- Key lock or hex screw reset
- Class I Group B, C & D, Class II Groups E. F, G, Class III
Specifications
- Model no : MPRS2-D45W-GE
- Brand : Edwards
- Width 3.06 in (7.77 cm)
- Height 4.75 in (12.07 cm)
- Depth 3.0 in (7.62 cm)
- Wiring Two or six contact terminal block depending on model
- Wire size 14 to 18 AWG
- Switch 10 amp @ 120 Vac
- Mounting Single gang weatherproof backbox (included)
- Lock Standard key or hex key
Related products
Close
Honeywell – CALL POINTS INTELLIGENT ADDRESSABLEDEVICES – Model: HM-MCP-GLASS
The Honeywell HM-MCP-GLASS is a premium intelligent addressable manual call point designed for fast and reliable manual activation of fire alarm systems. Engineered for use in commercial and industrial environments, this unit allows users to trigger an alarm by breaking the front glass element in case of emergency.
Close

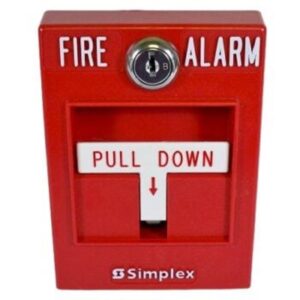

Simplex 4099‑9001 Manual Call Point
