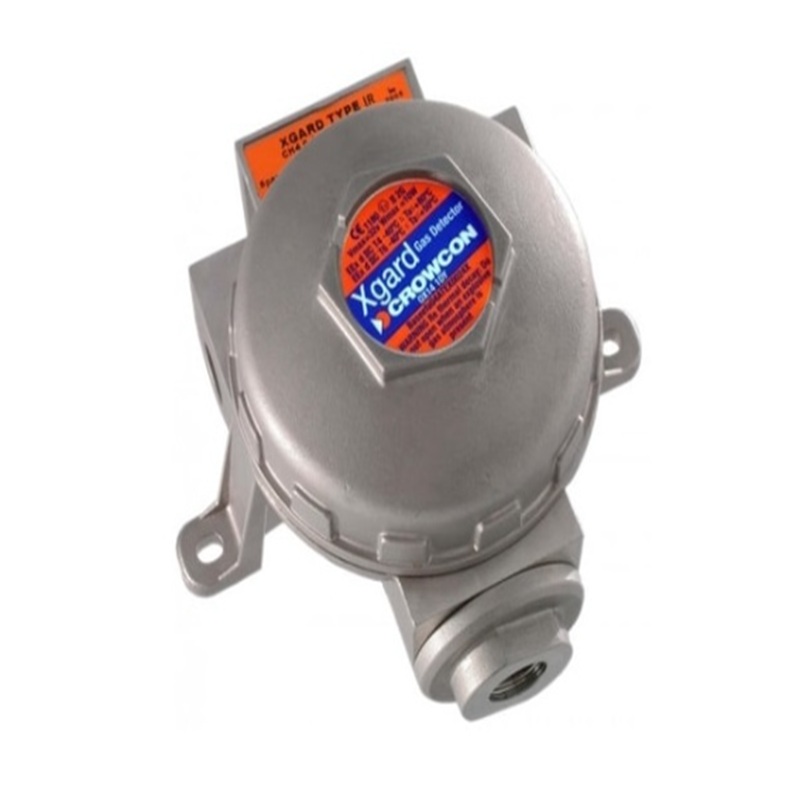

CrownCon – Xgard IR Infrared Gas Detector XIR-A1-01-CV XIR Alu M20 ATEX/IECEx LPG- 100LEL Model no : XIR-A1-01-CV
₹ 131,853.20 GST included
Description
Xgard IR is an explosion-proof gas detector which uses a dual-wavelength infrared sensor to provide highly dependable detection of hazardous gases and vapours. Based on Crowcon’s hugely successful Xgard design, Xgard IR offers the many advantages of infrared sensor technology in a rugged and versatile package including; fail safe sensor technology, immune to poisoning, no damage by over-gasing, fast response and suitable for use in inert atmospheres
Features
- Advanced dual-wavelength infrared sensing technology.
- Detects LPG concentrations from 0–100% LEL.
- Immune to catalytic sensor poisoning.
- Fail-safe operation with continuous self-monitoring.
- Not affected by oxygen-deficient or inert atmospheres.
- No damage from high gas exposure or over-gassing.
- Fast response time (T90 < 30 seconds).
- Explosion-proof flameproof housing for hazardous areas.
- Low power consumption (<4W).
Specifications
- Product Type Fixed Infrared Gas Detector
- Model Number XIR-A1-01-CV
- Series Xgard IR
- Gas Detected LPG (Liquefied Petroleum Gas)
- Detection Range 0–100% LEL
- Sensor Technology Dual-Wavelength Infrared (IR)
- Enclosure Material Corrosion-Resistant Aluminum
- Cable Entry M20
- Power Supply 14–32 VDC
- Power Consumption < 4W
