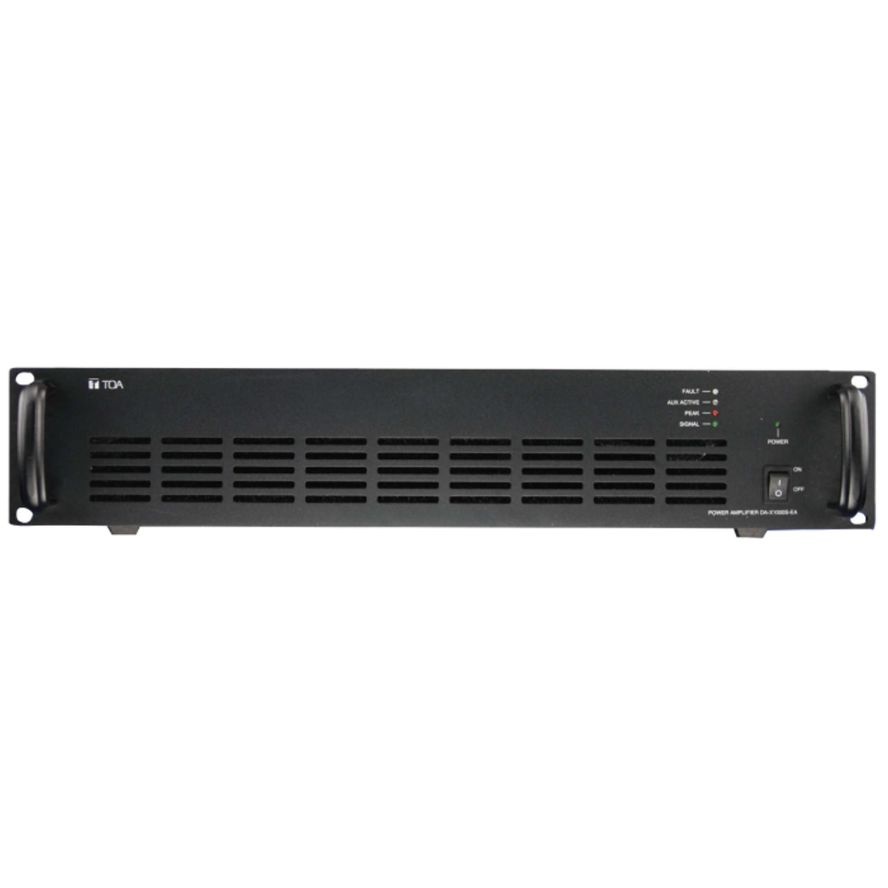

TOA Digital Power Amplifier, 1x1000W, DA-X1000S-AS

Name: TOA Digital Power Amplifier, 1x1000W, DA-X1000S-AS
SKU: FSIN0000361823
Price: 86671.00 INR
Availability: InStock

See all products from toa

₹ 86,671.00 GST included

Low-loss Class D power Amplifier. 1 Channel 1000W. Can be used as Standby Amplifier.

In stock

Compare

Product Code : FSIN0000361823 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Digital Power Amplifier, 1x1000W, DA-X1000S-AS is a Class D amplifier used for VX-1000 System which is Compliant with the Chinese Standard CCCF for Fire Alarm System, connected by a Dedicated interface. This has AUX INPUT which is for General Purpose Connection. DA-X1000F Single-channel Amplifier is a part of VX-1000 Basic system and these models will be used with VX-1000MC. Basic concept is Smooth connection and Interface with VX-1000MC. PA-LINK connection with RJ45 connector is used.

Features

Low-loss Class D power Amplifier
1 Channel 1000W
Can be used as Standby Amplifier

Specifications

Brand : TOA
Power Source : 220 - 240 V AC, 50/60 Hz, T6.3AL
Amplification System : Class D
Power Consumption : 30W (standby mode), 1200 W (Rated output 100 V line)
Input : 1 channel: PA LINK (Dedicated configuration with VX-1000MC), 1 channel: AUX INPUT (PIN 1,2,3), Balanced input, Maximum input 0 dB (1), Input impedance of 20 kohm
Rated Output : 1 channel (2 Pin): 1000 W (100 V line)
Frequency Response 110 to16 kHz plus or minus 3dB
Finish : Panel: Aluminum, black, electrolytic plate, Black
Dimensions : 482 (W) × 88 (H) × 392 (D) mm
Weight : 6.6 kg
Included Accessories : CE power cord x 1, UK power cord x 1, Foot Pad x 4, Fuse T6.3AL x 1 (built-in), Detachable terminal 2P x 1, Detachable terminal 5P x 1
