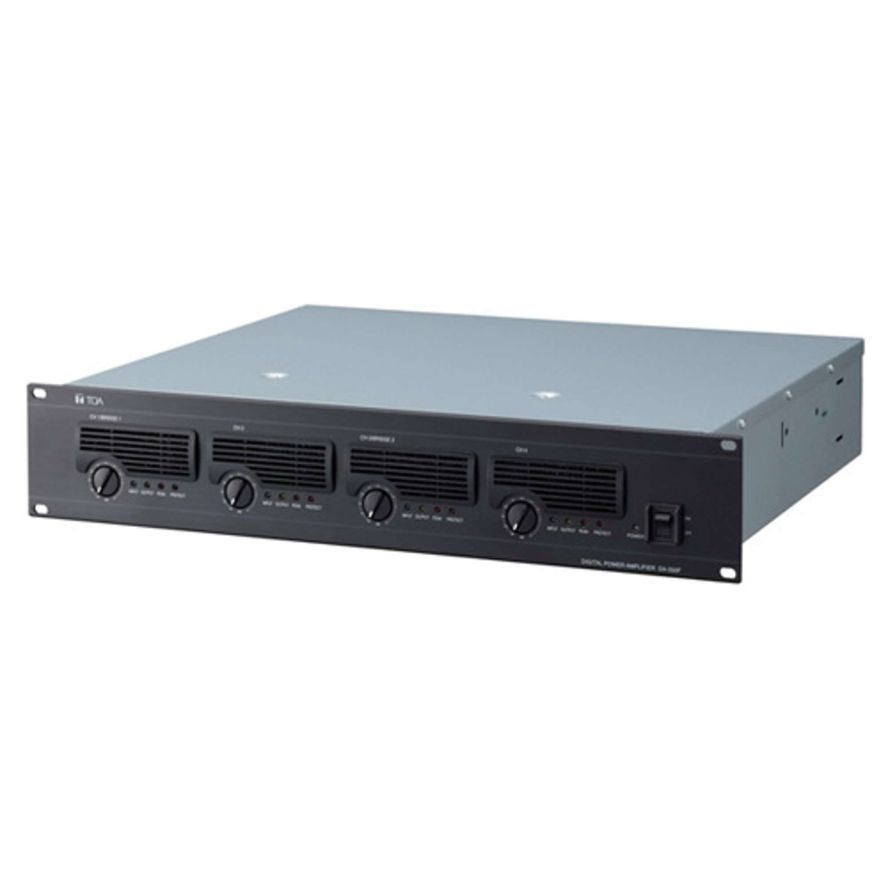

TOA DA-550F Multi-channel Digital Power Amplifier for PA & Voice Alarm Amplification Systems

Name: TOA DA-550F Multi-channel Digital Power Amplifier for PA &amp; Voice Alarm Amplification Systems
SKU: FSIN0000361822
Price: 516840.00 INR
Availability: InStock

See all products from toa

₹ 516,840.00 GST included

4 ohm Speaker Output. 4x 550 W Rated Output. Independent Power Supply for each Channel. Light weight and Compact. Rack mountable with 2 Units. Stack upto 5 Units without open spaces between Units. Selectable Stereo or Bridge Operation (DA-550F). Forced-air Cooling System. Low Heat Dissipation. Comprehensive Protection Circuitry. Removable Dust Filters for easy Maintenance.

In stock

Compare

Product Code : FSIN0000361822 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Multi-channel Digital Power Amplifier, DA-550F is a 4-Channel Digital Power Amplifier featuring Lightweight, Compact, High power output, and High Efficiency. It Delivers 550 W x 4 channels (4 ohm output) using a Switching Power Supply. Each channel is equipped with an Independent Power Section. Its Control/Monitor Terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).

Features

4 ohm Speaker Output
4x 550 W Rated Output
Independent Power Supply for each Channel
Light weight and Compact
Rack mountable with 2 Units
Stack upto 5 Units without open spaces between Units
Selectable Stereo or Bridge Operation (DA-550F)
Forced-air Cooling System
Low Heat Dissipation
Comprehensive Protection Circuitry. Removable Dust Filters for easy Maintenance.

Specifications

Brand : TOA
Power Source : 220 - 240 V AC, 50/60 Hz
Amplification System : Class D
Power Consumption : 480 W (based on EN standards) 2750 W (rated output 4 ohm x 4) 1550 W (rated output 8 ohm x 4)
Input : 4 circuits, plus 4 dB (1.23 V) (input level control in maximum position), 10 kohm, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type Connector. CH 1 mode ON/OFF switch (ON: CH1 to All Ch, OFF: Each ch)
Rated Output : 4 channels: 550 W x 4 (4 ohm), 350 W x 4 (8 ohm) 2 channels (BRIDGE): 1100 W x 2 (8 ohm) M4 screw terminal, distance between barriers: 8.8 mm (0.35)
Frequency Response : 20 Hz - 20 kHz (minus 2 dB, plus 1dB)
Finish : Panel: Aluminum, black, alumite Case: Plated steel sheet
Dimensions : 482 (W) × 88.4 (H) × 404.2 (D) mm
Weight : 9 kg
Included Accessories : Power cord (2 m (6.56 ft), Removable terminal plug (3 pins) …4, Rack mounting screw (with washer) …4, Tamper-proof cap …4
