TOA Digital Processor, DP-SP3

Name: TOA Digital Processor, DP-SP3
SKU: FSIN0000361833
Price: 132573.00 INR
Availability: InStock

See all products from toa

₹ 132,573.00 GST included

Digital Speaker Processor for clear, High-quality and Realistic sound, with a full Sense of Presence. Essential Audio processing tools: Compressor, Parametric Equalizer, Output Delay and Mute. 10 Filters on each input and 12 filters on each output.
Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible. 2 inputs & 6 outputs, processor can work with a 3-way multi-amp system.

In stock

Compare

Product Code : FSIN0000361833 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

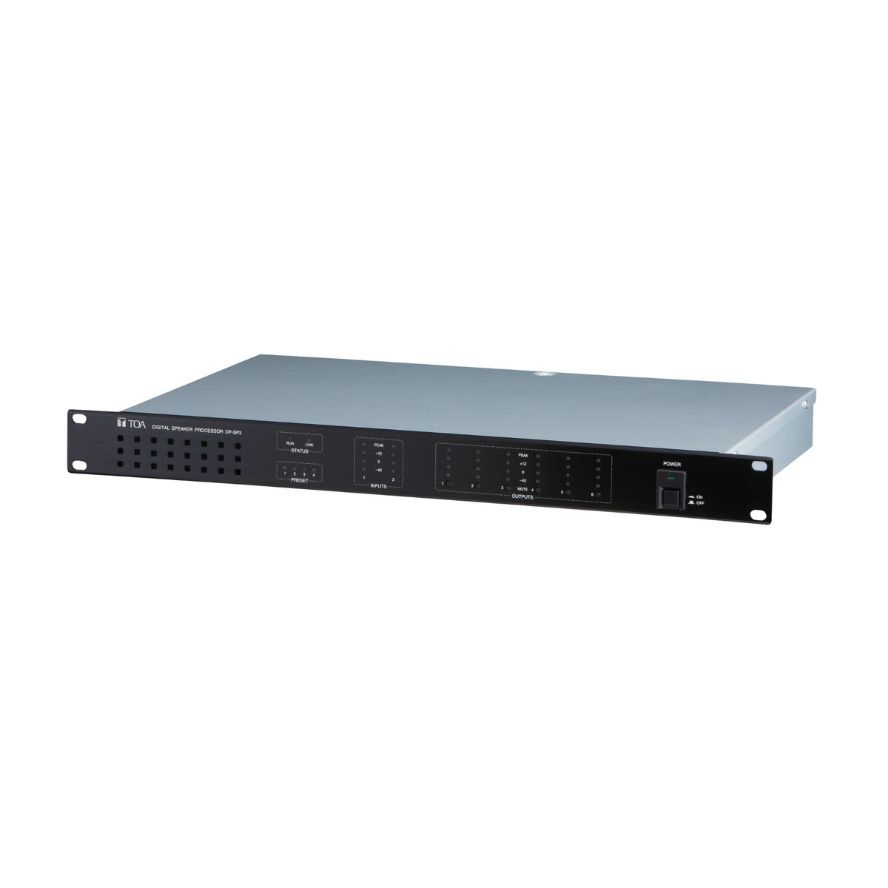

TOA Digital Processor, DP-SP3 is a 1U Rack Mountable Digital speaker processor having 2 inputs and 6 outputs. It Features Digital Signal processing functions such as Equalizer, Crossover, Matrix, Compressor, and Delay. Other functions include input PAD, analog output attenuator, output MUTE, EQ characteristic library for TOA speakers, and contact input terminals. When connected to a LAN, settings and operations of the DP-SP3 can be performed on a PC with the supplied DP-SP3 PC Software installed. It can be mounted in an EIA component rack (1U size).

Features

Digital Speaker Processor for clear, High-quality and Realistic sound, with a full Sense of Presence
Essential Audio processing tools: Compressor, Parametric Equalizer, Output Delay and Mute
10 Filters on each input and 12 filters on each output
Any combinations of parametric equalizer and high/low pass, and high/low shelving filters, as well as all-pass, notch filters and CD horn equalizer are possible
2 inputs & 6 outputs, processor can work with a 3-way multi-amp system

Specifications

Brand : TOA
Power Source : 220 - 240 V AC, 50/60 Hz
Power Consumption : 25 W
Frequency Response : 20 Hz − 20 kHz, plus or minus 1 dB
Sampling Frequency : 96 kHz
Dynamic Range : 110 dB or more
Distortion : 0.03 percent or less, 1 kHz, plus 4 dB input/output, 20 Hz − 20 kHz BPF
Crosstalk : minus 80 dB or less, 1 kHz
Input : 2 channels, plus 4 dB (max. plus 24 dB), 10 kohm, electronically-balanced, removable terminal block (3P)
Output 6 channels, plus 4 dB (max. plus 24 dB), applicable load 600 ohm or more, electronically-balanced, removable terminal block (3P)
A/D Converter : 24 bits
