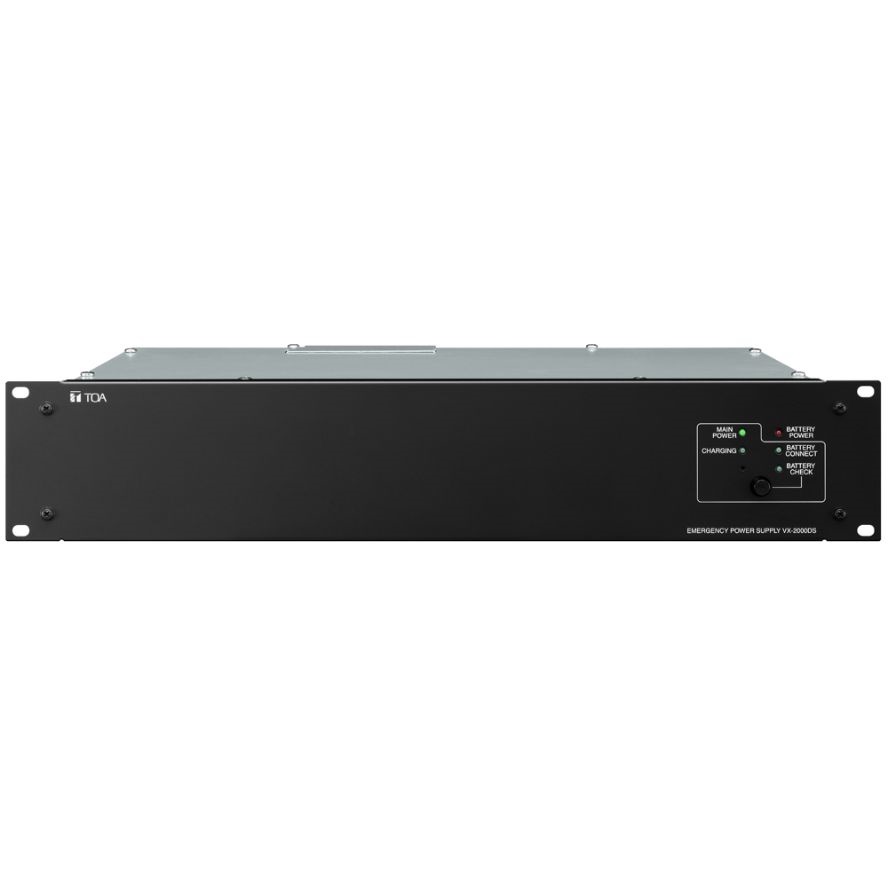

TOA Emergency Power Supply, VX-2000DS

Name: TOA Emergency Power Supply, VX-2000DS
SKU: FSIN0000362347
Price: 49265.00 INR
Availability: InStock

See all products from toa

₹ 49,265.00 GST included

Up to 3 (6 ch) VX-200PS Power Supply Units can be connected per VX-2000DS to supply backup DC power to Individual Components. Automatically Switches to the backup power supply when the DC power supply from the VX-200PS is Interrupted. Detects charging circuitry or Battery failures, and Transmits Failure Signals to the DS LINK of the TOA Voice. Evacuation Systems (VX-2000, SX-2000, and VM-3000). Keeps a 2 x 12 V Sealed lead-acid Battery charged while Maintaining Temperature compensation for the charging Voltage. Automatically disconnects the battery if its voltage reaches a discharge final level.

In stock

Compare

Product Code : FSIN0000362347 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Emergency Power Supply, VX-2000DS Supplies the DC Power to each equipment in the SX-2000 System by Connecting the VX-200PS Power Supply Unit. It keeps the battery unit that contains 2 × 12 V sealed Lead Batteries charged compensating for the temperature of the battery charging voltage. When the DC power supply from the VX-200PS stops, the VX-2000DS is Automatically Switched to the Backup Battery.

Features

Up to 3 (6 ch) VX-200PS Power Supply Units can be connected per VX-2000DS to supply backup DC power to Individual Components
Automatically Switches to the backup power supply when the DC power supply from the VX-200PS is Interrupted
Detects charging circuitry or Battery failures, and Transmits Failure Signals to the DS LINK of the TOA Voice Evacuation Systems (VX-2000, SX-2000, and VM-3000)
Keeps a 2 x 12 V Sealed lead-acid Battery charged while Maintaining Temperature compensation for the charging Voltage
Automatically disconnects the battery if its voltage reaches a discharge final level

Specifications

Brand : TOA
Power Source : 230 V AC, 50/60 Hz
Power Consumption : 240 W max.
Applicable Battery : Panasonic LC-X1265PG/APG (65 Ah)
Charging Method : Trickle charging
Charging Current : 5 A max.
Power Supply Input : 6 M4 screw terminal, distance between barriers: 11 mm (0.43 inch)
DC Power Output : 6 (25 A max. each) M4 screw terminal, distance between barriers: 11 mm (0.43 inch)
Finish : Panel: Surface-treated steel plate, black, 30 percent gloss, paint
Dimensions : 482 (W) × 88.4 (H) × 377.6 (D) mm (18.98 inch × 3.48 inch × 14.87 inch)
Weight : 10.5 kg (23.15 lb)
