TOA VX-1500DA-AS Power Amplifier Module for PA & Voice Alarm Amplification Systems
₹ 114,460.00 GST included
Class D power amplifier module. Mounts in the Frame Units. Dust filter, Easy to Clean.
In stock
Description

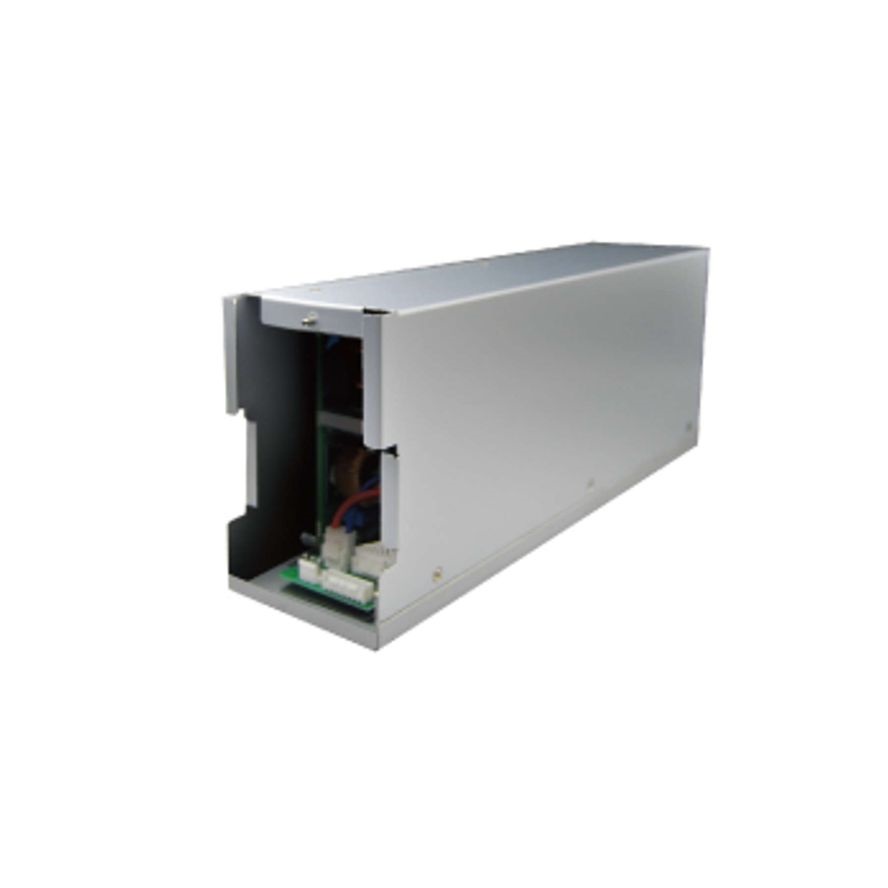

TOA Power Amplifier Module, VX-1500DA-AS is a Digital Power Amplifier used for VX-1000 system. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-1250DA also features standby mode to be set for reducing standby power consumption. It requires a matrix controller VX-1000MC and peering frame VX-1000PF.
Features
- Class D power amplifier module
- Mounts in the Frame Units
- Dust filter, Easy to Clean
Specifications
- Brand : TOA
- Power Source : 220 - 240 V AC, 50/60 Hz
- Amplification System : Class D
- Power Consumption : 28.2 W (standby mode), 505 W (rated output mode)
- Output Power : 500 W
- Frequency Response : 20 - 20 kHz plus or minus 3 dB
- Distortion : Less than 1 percent
- Signal to Noise Ratio : More than 90 dB
- Ventilation : Forced air cooling
- Finish : SECC
- Dimensions : 82.5 (W) x 128.7 (H) x 316 (D) mm
- Weight : 2.085 kg
