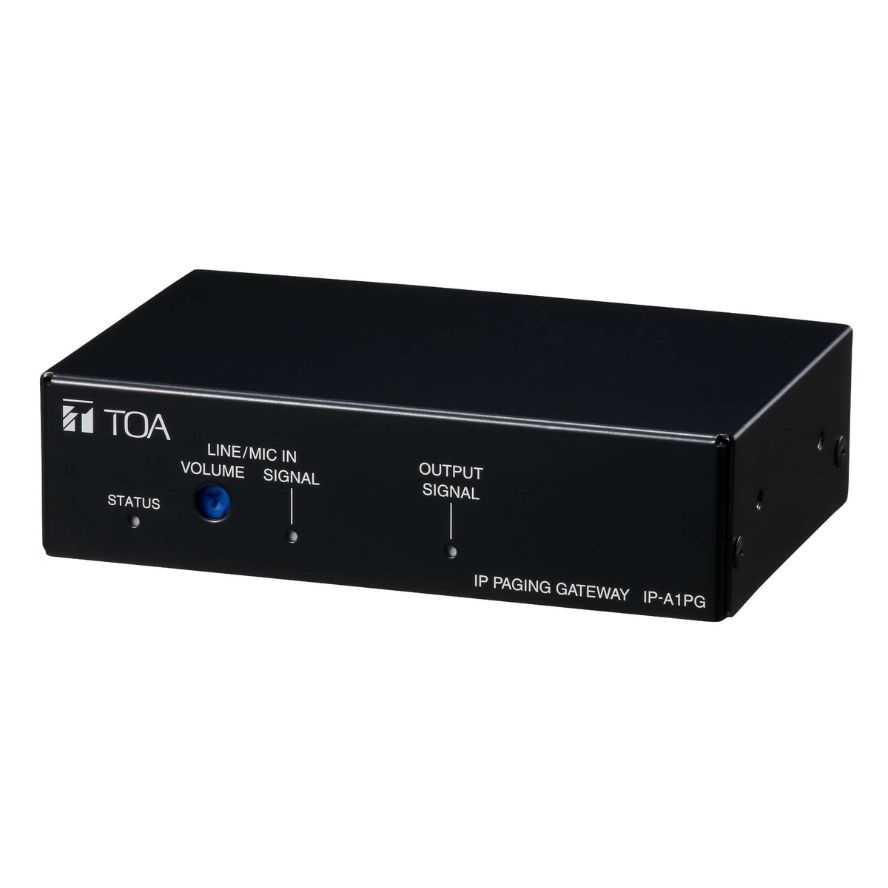

TOA IP Paging Gateway, IP-A1PG

Name: TOA IP Paging Gateway, IP-A1PG
SKU: FSIN0000362025
Price: 71095.00 INR
Availability: InStock

See all products from toa

₹ 71,095.00 GST included

Convert SIP audio, ONVIF, Internal Audio Files or Local Audio Source into Multicast Streaming. GUI Calendar Scheduler Function (up to 2,000 settings). System Mute Function to mute all Broadcasts made by every single IP-A1 Series Devices within the Same Network. 1 Local Audio input (LINE/MIC selectable, Phantom Power On/Off). 4 Control Inputs and 1 Control Output. HTTP/HTTPS commands (receive/send). Audio File Storage (20 files, total 80MB, WAV/MP3). PoE powered.

In stock

Compare

Product Code : FSIN0000362025 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA IP Paging Gateway, IP-A1PG is a PoE-powered Gateway Unit that Integrates Multiple IP Audio devices by converting Audio from Video Management Systems using ONVIF or SIP voice from SIP phone systems into Multicast Audio Streaming. It can also Transmit built-in sound source or Input Audio as Multicast Audio Streaming. Moreover, the event Broadcasting triggered by Control input, Scheduler or Remote API (HTTP/HTTPS) as well as the Command set that sends multiple HTTP/HTTPS commands Simultaneously are also Available.

Features

Convert SIP audio, ONVIF, Internal Audio Files or Local Audio Source into Multicast Streaming
GUI Calendar Scheduler Function (up to 2,000 settings)
System Mute Function to mute all Broadcasts made by every single IP-A1 Series Devices within the Same Network
1 Local Audio input (LINE/MIC selectable, Phantom Power On/Off)
4 Control Inputs and 1 Control Output
HTTP/HTTPS commands (receive/send)
Audio File Storage (20 files, total 80MB, WAV/MP3)
PoE powered

Specifications

Brand : TOA
Power Source : PoE plus (IEEE802.3af Class 3)
Power Consumption : 2.5 W
Audio Codec : Opus, PCMU (G.711u), PCMA (G.711a), G.722
Audio Delay Time : Min. 100 ms(1)
Audio Transmission Method : Multicast Audio Streaming
Network I/F : 100BASE-TX, Auto MDI/MDI-X, RJ45 connector
Network Protocol : IP, TCP, UDP, TLS, HTTP, HTTPS, RTP, SRTP, RTSP, RTCP, SRTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261), SIPS
Finish : Front case: Surface-treated steel plate, black, paint Rear chassis: Surface-treated steel plate
Dimensions 126 (W) x 33 (H) x 80 (D) mm (4.96 inch x 1.3 inch x 3.15 inch) (excluding projection)
Weight : 390 g (0.86 lb)
Included Accessories Removable terminal plug (6 pins, preinstalled on the unit) x 2, Removable terminal plug (2 pins, preinstalled on the unit) x 1, Rubber feet x 4, Mounting screw (M3 x 6) x 4
