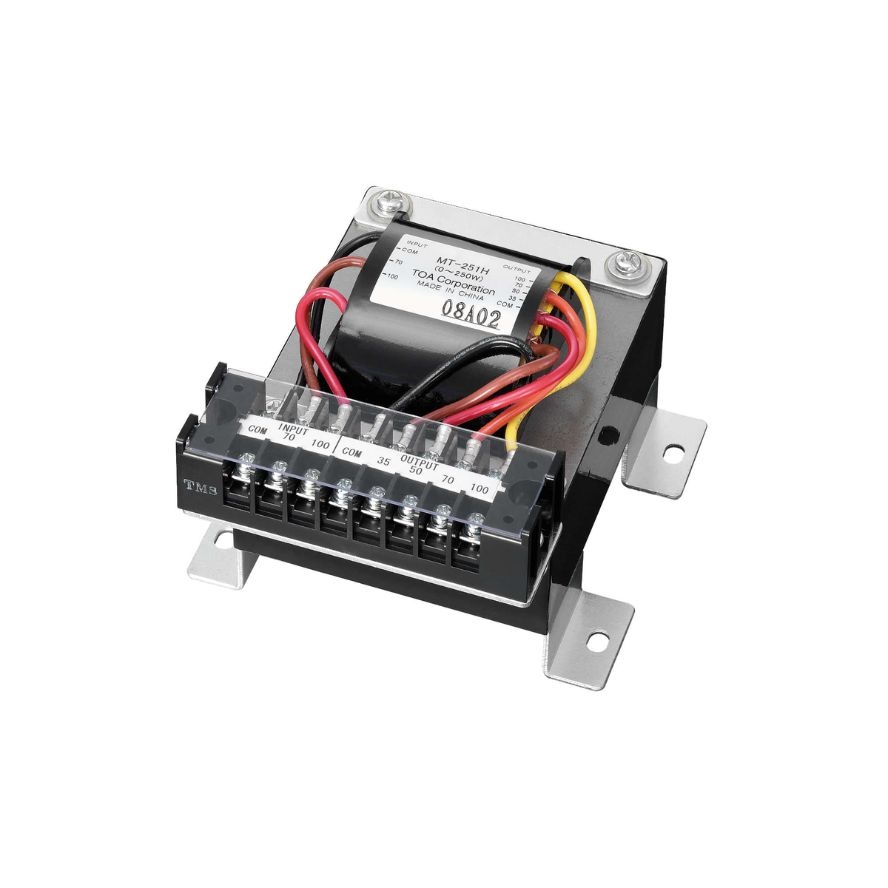

TOA MT-251H Matching Output Transformer for PA System Power & Signal Accessories
₹ 50,740.00 GST included
Dedicated to DA Amplifiers with 100 V Speaker Outputs. Electrical Isolation for High-impedance Speaker.
In stock
Description
TOA Matching output transformer, MT-251H is Designed for use with the DA-250DH, DA-250FH, DA-500F-HL and DA-500FH Multi-Channel Power Amplifiers, the MT-251H Electrically Isolates the High-impedance Speaker lines from the Amplifier.
Features
- Dedicated to DA Amplifiers with 100 V Speaker Outputs
- Electrical Isolation for High-impedance Speaker
Specifications
- Brand : TOA
- Capacity : 0 - 250 W
- Frequency Response : 30 - 18,000 Hz (+0 dB, -3 dB)
- Primary Side : 100 V line, 70 V line
- Secondary Side : 100 V line, 70 V line, 50 V line, 35 V line
- Connection Terminal : M3 screw terminal, distance between barriers: 6.6 mm (0.26 inch)
- Dimensions :108 (W) x 80 (H) x 122 (D) mm (4.25 inch x 3.15 inch x 4.8 inch)
- Weight : 2.4 kg (5.29 lb)
