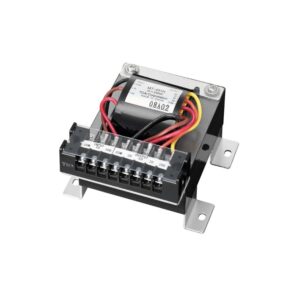

TOA MT-251H Matching Output Transformer for PA System Power & Signal Accessories
₹ 50,740.00 GST included

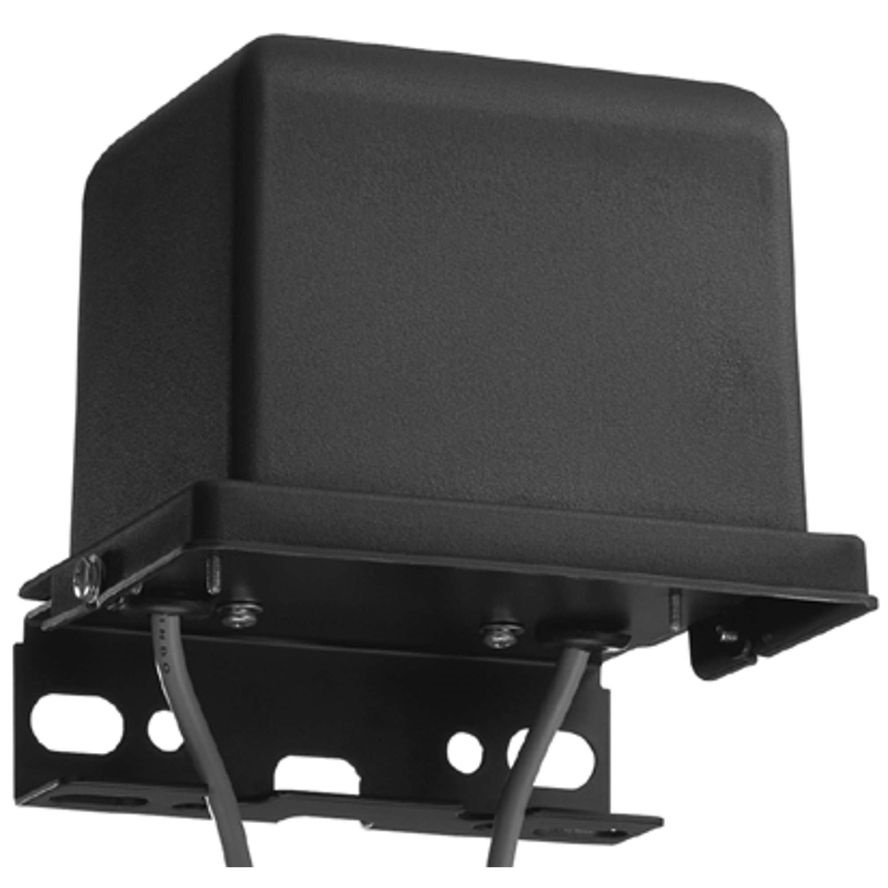

TOA MT-200 Matching Transformer for PA System Power & Signal Accessories
₹ 27,140.00 GST included
Designed to be Installed on to TOA HX Series Speakers. Enables TOA HX Series Speakers to be used in High Impedance Line.
In stock
Description
TOA Matching Transformer, MT-200 is a Matching Transformer for the HX-5 series and HX-7 Series Speaker Systems, and can be used both Indoor and Under-eave Use.
Features
- Designed to be Installed on to TOA HX Series Speakers
- Enables TOA HX Series Speakers to be used in High Impedance Line
Specifications
- Brand : TOA
- Rated Input : 200 W
- Primary Impedance : 100 V line: 50 ohm (200 W), 83 ohm (120 W), 167 ohm (60 W) 70 V line: 25 ohm (200 W), 50 ohm (100 W), 83 ohm (60 W), 167 ohm (30 W)
- Secondary Impedance : 8 ohm
- Water Protection : IPX4 (the tilt angle must be within 45 deg.) (1)
- Installation Environment : Indoor installation, under-eave installation(2)
- Finish : Cover: Polypropylene Mounting bracket: Stainless steel
- Dimensions : 164 (W) x 141 (H) x 129 (D) mm
- Weight : 2.8 kg
- Included Accessories : Speaker mounting bolt (M8) with washer …2
