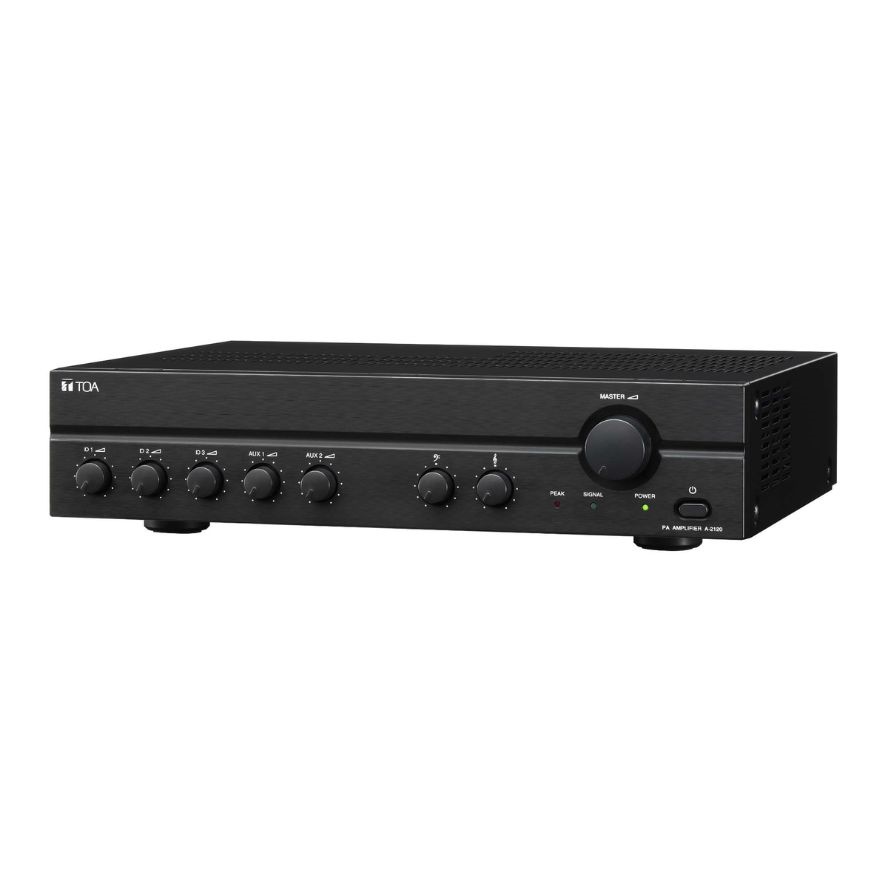

TOA Mixer Power Amplifier, A-2060

Name: TOA Mixer Power Amplifier, A-2060
SKU: FSIN0000361699
Price: 18880.00 INR
Availability: InStock

See all products from toa

₹ 18,880.00 GST included

4 Versions available: 30 W, 60 W, 120 W or 240 W. User-friendly front Panel allows easy operation. Excellent Frequency response.
3 Electronically balanced microphone inputs, 2 AUX Inputs and Recording Output.
Phantom Power is provided to MIC 1, for Supplying power to a Condenser Microphone. Wide Tone-control adjustment range of Plus or Minus 10dB for both bass and Treble. 100 V / 70 V line or 4 Speaker Outputs. 2-Unit size.

In stock

Compare

Product Code : FSIN0000361699 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Mixer Power Amplifier, A-2060 is a High cost-Performance Mixer Power Amplifier suited for Broadcasting Paging or Background Music in Schools, Offices, Shops, Factories, Mosques, Churches and Large Rooms.

Features

4 Versions available: 30 W, 60 W, 120 W or 240 W
User-friendly front Panel allows easy operation
Excellent Frequency response
3 Electronically balanced microphone inputs, 2 AUX Inputs and Recording Output.
Phantom Power is provided to MIC 1, for Supplying power to a Condenser Microphone
Wide Tone-control adjustment range of Plus or Minus 10dB for both bass and Treble
100 V / 70 V line or 4 Speaker Outputs
2-Unit size

Specifications

Brand : TOA
Power Source : 220 - 240 V AC, or 24 - 30 V DC
Rated Output : 60 W
Power Consumption : 72 W (EN60065), 150 W (AC operation at rated output), 4 A (DC operation at rated output)
Frequency Response : 50 - 20,000 Hz (Plus or Minus 3 dB)
Distortion : Less than 1% at 1kHz, 1/3 Rated Power
Input : Mic 1 : Minus 60 dB, 600, Balanced, Phone jack. AUX 1,2: Minus 20 dB, 10k, Unbalanced, RCA pin jack
Output Speaker out: Balanced (Floating), High Impedance : 170 (100V), 83 (70V), Low Impedance : 4 (15.5V), Rec Out: 0dB (1V), 600, Unbalanced RCA pin jack
Signal to Noise Ratio : Over 60dB
Indicator : POWER, PEAK, SIGNAL
