TOA M-66 Multi-Route Unit for PA Network Control & System Integration

Name: TOA M-66 Multi-Route Unit for PA Network Control &amp; System Integration
SKU: FSIN0000362040
Price: 142780.00 INR
Availability: InStock

See all products from toa

₹ 142,780.00 GST included

Can be Operated as a 6-input-6-output Microphone preamplifier/ Line Driver or Splitter/ Combiner. Front Panel Switch for assigning signal Configurations. Mic/ Line level selector switch and 20 dB PAD on each input channel for a Wide Range of precise signal settings from Microphone to line Levels. Cascading multiple units for increasing the number of inputs and outputs. Simultaneous use of multiple functions (i.e. different functions can be assigned to Different Channels.

In stock

Compare

Product Code : FSIN0000362040 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

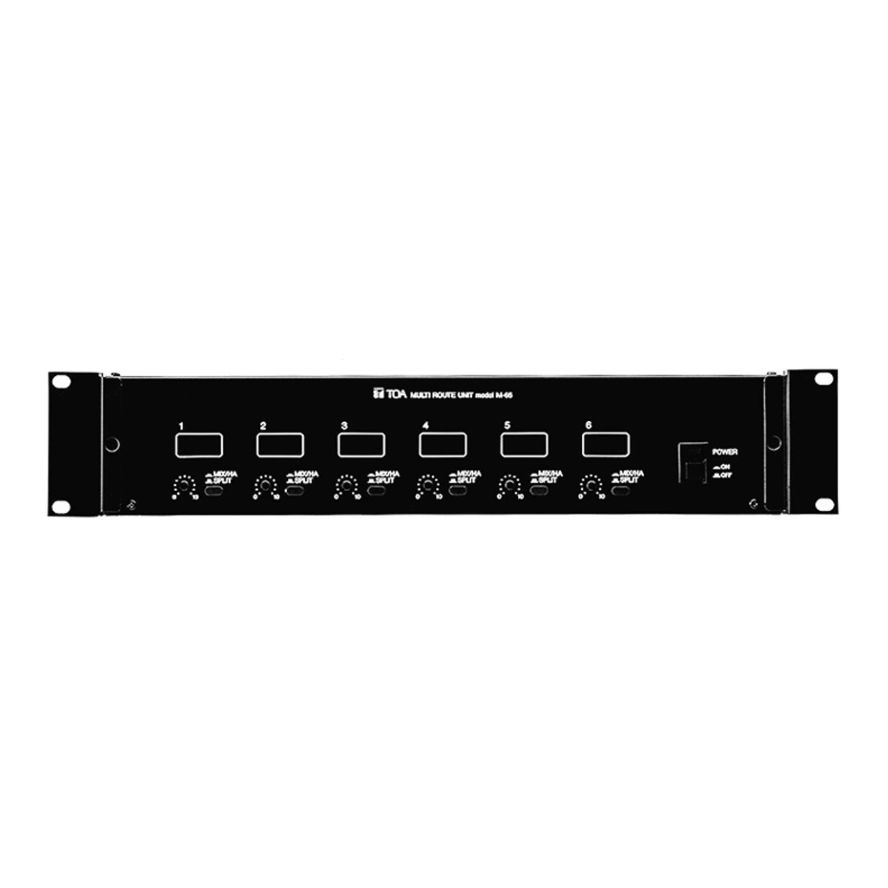

TOA Multi-Route Unit, M-66 is a Multi-route Unit that can be Mounted (2-unit size) in an EIA Standard Equipment Rack. It has 6 Inputs and 6 Outputs and Features Microphone Head Amplifier, Mixer, and Distributor Functions. Because the Functions can be selected for Individual Channels, wide Signal Routing can be Realized.

Features

Can be Operated as a 6-input-6-output Microphone preamplifier/ Line Driver or Splitter/ Combiner
Front Panel Switch for assigning signal Configurations
Mic/ Line level selector switch and 20 dB PAD on each input channel for a Wide Range of precise signal settings from Microphone to line Levels
Cascading multiple units for increasing the number of inputs and outputs
Simultaneous use of multiple functions (i.e. different functions can be assigned to Different Channels

Specifications

Brand : TOA
Power Source : 230 VAC, 50/60 Hz
Power Consumption : 12 W
Frequency Response : 20 Hz - 20 kHz (plus 1, minus 3 dB)
Noise : Output: minus 100 dB or less (band pass filter, volume minimal)
Input : 6 inputs, mic/line changeable, 2 kohm, XLR-3-31 compatible (electrically balanced) -60 dB (mic)/-10 dB (line)
Output : 6 outputs, plus 4 dB (appropriate impedance not 600 ohm or less), XLR-3-32 compatible (electrically balanced)
Operating Temperature : 0 Deg. C to plus 40 Deg. C (32 Deg. F to 104 Deg. F)
Finish : Panel: case: Pre-coated steel plate, black, 30 percent glossy Rack mounting screw: Aluminum, alumite, black Security cover: Acrylic, (smoke)gray
Dimensions : 482.6 (W) x 88.4 (H) x 177.8 (D) mm (19 inch x 3.48 inch x 7 inch)
Weight : 3 kg (6.62 lbs)
