TOA System Amplifier, VX-050DA
₹ 47,377.00 GST included
Low loss Modular Class-D Amplifier. Modules to be Mounted in the Frame Units. Power level: 150 W. Can Easily be Removed or Replaced simply by Unplugging them, no need for Special Tools. Dust filter, easy to clean. 100 V Output without transformer resulting in light-weight units. Fuse easily accessible from rear.
In stock
Description

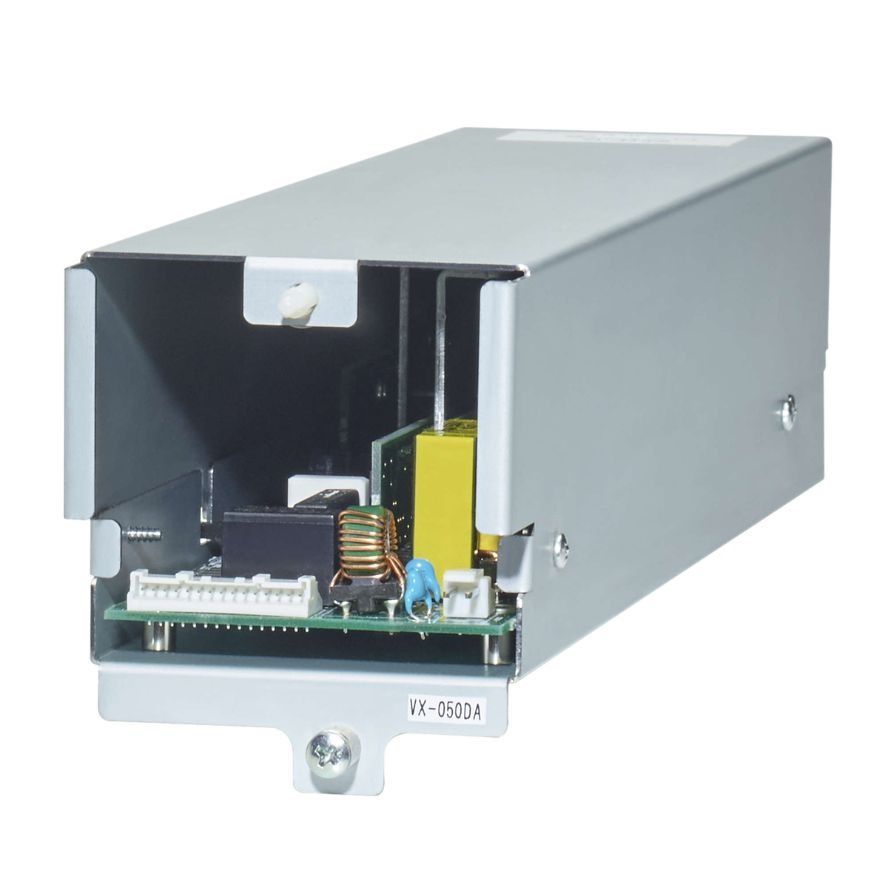

TOA System Amplifier, VX-050DA is a Digital Power Amplifier used for the VX-3000 systems which is compliant with the European Standard EN54 for fire alarm systems. It is a module type with 1 channel of class-D digital power amplifier, which contribute to energy-saving and light weight design. The VX-015DA also features standby mode to be set for reducing standby power consumption. It requires a dedicated control units VX-3004F, VX-3008F, VX-3016F and power supply unit VX-3000DS.
Features
- Low loss Modular Class-D Amplifier
- Modules to be Mounted in the Frame Units
- Power level: 150 W
- Can Easily be Removed or Replaced simply by Unplugging them, no need for Special Tools
- Dust filter, easy to clean
- 100 V Output without transformer resulting in light-weight units
- Fuse easily accessible from rear
Specifications
- Brand : TOA
- Power Source : 31 V DC (operating range: 20 to 33 V DC), DC power in: M4 screw terminal, distance between barriers: 11 mm (0.43 inch)
- Amplification System : Class D
- Power Consumption : 100 W at 31 V DC
- Output Voltage : 100 V (70 V, 50 V: selectable)
- Minimum Impedance Load : 20 ohm (at 100 V line), 14 ohm (at 70 V line), 10 ohm (at 50 V line)
- Maximum Capacitive Load : 0.5 muF
- Number of Channels : 1
- Input : DA CONTROL LINK: Nylon connector (15 pins)
- Output : DA OUTPUT LINK: Nylon connector (2 pins)
- Finish : Surface-treated steel plate
- Dimensions : 82.8 (W) x 91 (H) x 358.2 (D) mm (3.26 inch x 3.58 inch x 14.1 inch)
