TOA Unbalanced Line Input, U-01R
₹ 2,714.00 GST included
For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers. Use for Adjacent Sources (less than 15ft from the host unit). Connectors: RCA Jack.
In stock
Description

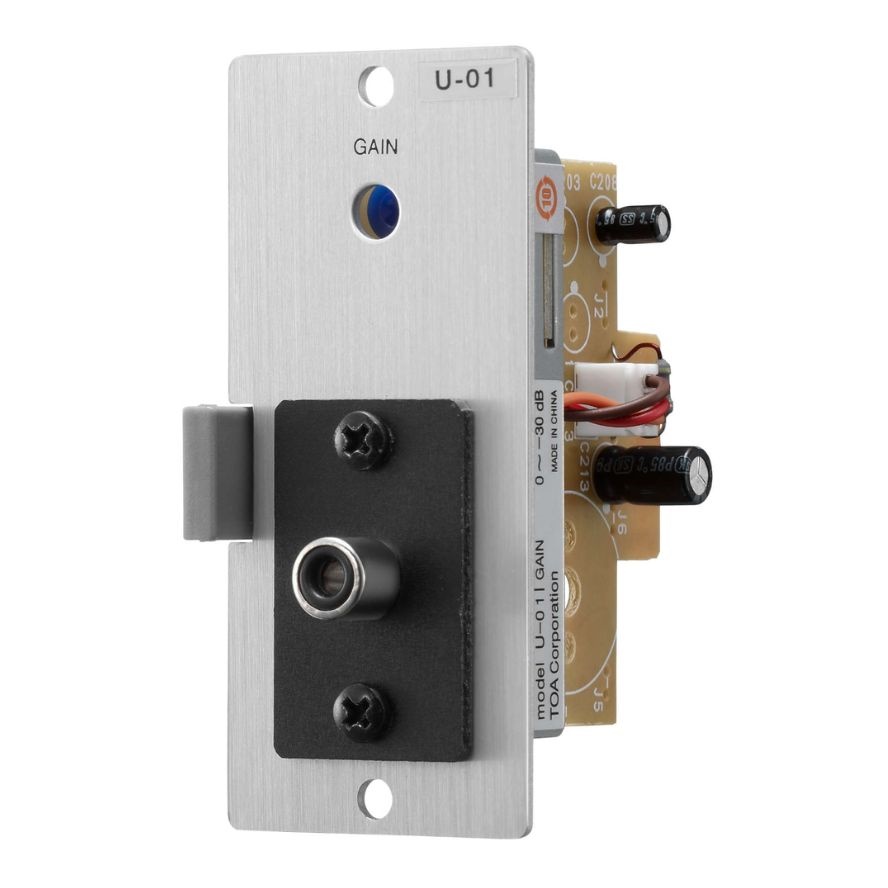

TOA Unbalanced Line Input, U-01R is a Line Input Module to be used in Conjunction with the 900 series Components and other TOA’s equipment. It has an Unbalanced line input with RCA Pin Jack Connector, and gain Control.
Features
- For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers
- Use for Adjacent Sources (less than 15ft from the host unit)
- Connectors: RCA Jack.
Specifications
- Brand : TOA
- Power Supply : 24 V DC (supplied from the main frame)
- Current Consumption : 4 mA
- Input Sensitivity : minus 20 dB (rated output: minus 20 dB), adjustable: minus 20 to plus 10 dB
- Input Impedance : 220 kohm, unbalanced
- Frequency Response : 20 Hz to 20 kHz plus or minus 1.0 dB
- Distortion : 0.05 percent or less (1 kHz, output: 0 dB)
- Noise Level : minus 106 dB (20 Hz - 20 kHz BPF)
- Gain : minus 30 to 0 dB
- Connector : RCA pin Jack (1P)
- Dimensions : 35 (W) x 78 (H) x 88 (D) mm (1.38 inch x 3.07 inch x 3.46 inch)
- Weight : Max. 75 g (0.17 lb)
