TOA U-03R AUX Module for PA Network Control & System Integration
₹ 8,024.00 GST included
For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers. Use for Adjacent Sources (less than 15ft from the host unit). High and low cut filters for tone control. Connectors: Dual RCA Jack w/ passive summing.
In stock
Description

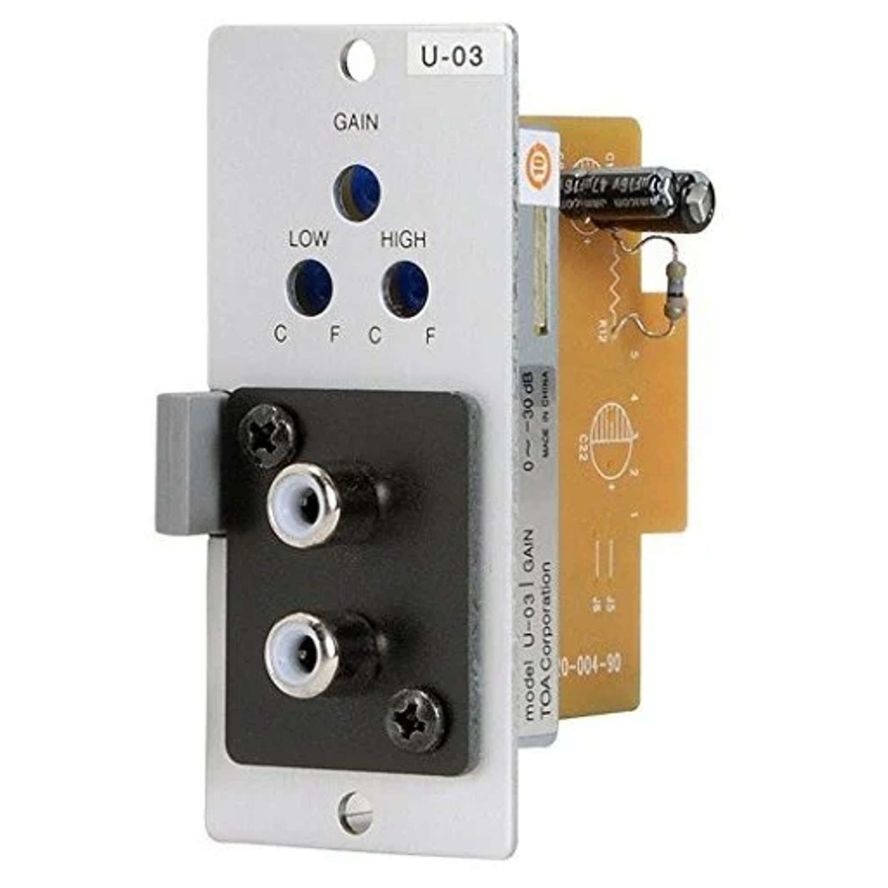

TOA AUX Module, U-03R is a Line Input Module to be used in Conjunction with the 900 series components and other TOA’s equipment. It has a Low-cut and a High-cut Filter.
Features
- For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers
- Use for Adjacent Sources (less than 15ft from the host unit)
- High and low cut filters for tone control
- Connectors: dual RCA jack w/ passive summing
Specifications
- Brand : TOA
- Power Supply : 24 V DC (supplied from the main frame)
- Current Consumption : 8 mA
- Input Sensitivity (Rated Output 100 mV) : 100 - 3,600 mV (adjustable)
- High Cut Filter (10 kHz) : minus 7 to minus 13 dB
- Low Cut Filter (100 Hz) : minus 5 to minus 15 dB
- Noise Output : Under 10 muV
- Distortion : 0.05 percent or less (1 kHz, output: 0 dB)
- Frequency Response : 20 Hz - 20 kHz
- Input Connector : RCA pin jacks
- Output Connector : 6P card edge-connector
- Dimensions : 35 (W) x 78 (H) x 88 (D) mm
- Weight : Max. 50 g
