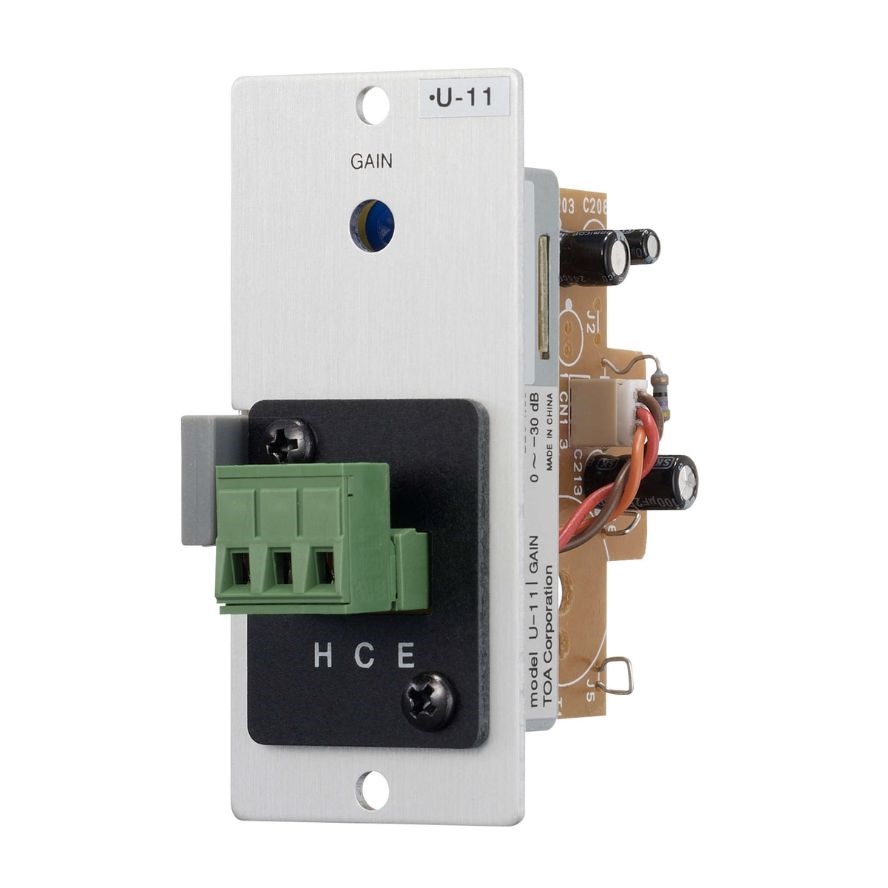

TOA Line Input Module, U-11S

Name: TOA Line Input Module, U-11S
SKU: FSIN0000362325
Price: 3776.00 INR
Availability: InStock

See all products from toa

₹ 3,776.00 GST included

For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers. Use for Adjacent Sources (less than 15ft from the host unit) – Responds To Mute Bus Activation, via Mute SEND module or switch-closure. Responds To Both Mute Bus #1 And Mute Bus #2 By Default (cut jumper(s) to disconnect individual mute bus). Adjustable Mute Depth Provides Ducking Rather Than Full Muting. Connector: Removable Terminal Block.

In stock

Compare

Product Code : FSIN0000362325 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Line Input Module, U-11S is a Line Input Module to be used in Conjunction with the 900 Series Components and other TOA’s equipment. It has un Unbalanced line matching Input with Removable Terminal Block Connector, mute-receive Function and gain control.

Features

For Unbalanced, line level Sources such as Tuners, Cassette Decks, CD players, Computer sound cards, Jukeboxes, Mixers and Satellite Receivers
Use for Adjacent Sources (less than 15ft from the host unit) - Responds To Mute Bus Activation, via Mute SEND module or switch-closure
Responds To Both Mute Bus #1 And Mute Bus #2 By Default (cut jumper(s) to disconnect individual mute bus)
Adjustable Mute Depth Provides Ducking Rather Than Full Muting
Connector: Removable Terminal Block

Specifications

Brand : TOA
Power Supply : 24 V DC (supplied from the main frame)
Current Consumption : 9 mA
Input Sensitivity : minus 20 dB (rated output: minus 20 dB), adjustable: minus 20 to plus 10 dB
Input Impedance : 220 kohm, unbalanced
Frequency Response : 20 Hz to 20 kHz plus or minus 1.0 dB
Distortion : 0.05 percent or less (1 kHz, output: 0 dB)
Noise Level : minus 100 dB (20 Hz - 20 kHz BPF)
Gain : minus 30 to 0 dB
Connector : Removable terminal block (3P)
Dimensions : 35 (W) x 78 (H) x 88 (D) mm (1.38 inch x 3.07 inch x 3.46 inch)
Weight : Max. 55 g (0.12 lb)
