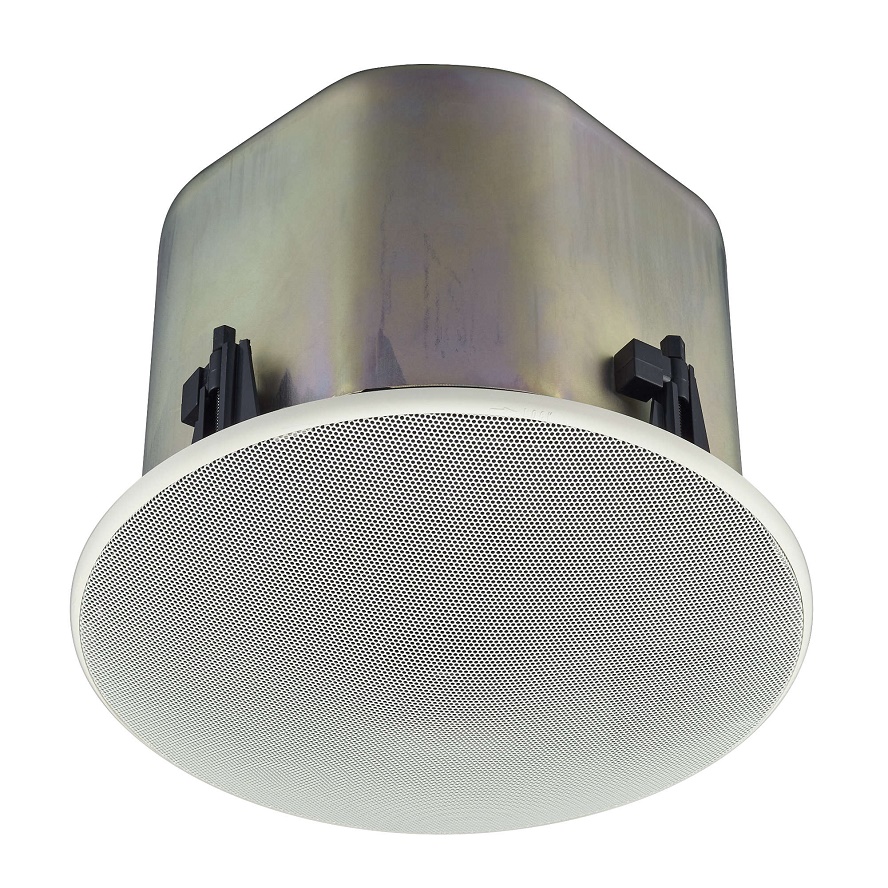

TOA F-2852C Wide-Dispersion Ceiling Speaker for Public Address & Voice Evacuation Systems

Name: TOA F-2852C Wide-Dispersion Ceiling Speaker for Public Address &amp; Voice Evacuation Systems
SKU: FSIN0000361895
Price: 41300.00 INR
Availability: InStock

See all products from toa

₹ 41,300.00 GST included

Ideal for High ceiling applications. Ported Bass-reflex Design. Co-axial: 6.5 inch Cone Driver and Dome Tweeter. Special Diffuser provides Wide off-axis high frequency Response. Metal black-can and Safety cable. Removable Terminal block with loop-through Terminations. Overload Protection Circuitry.

In stock

Compare

Product Code : FSIN0000361895 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Wide-Dispersion Ceiling Speaker, F-2852C Covers an Extremely Wide area and can be used for 25, 70 and 100 V Line Applications. Well-balanced Sound can be heard Uniformly at any Location.

Features

Ideal for High ceiling applications
Ported Bass-reflex Design
Co-axial: 6.5 inch Cone Driver and Dome Tweeter
Special Diffuser provides Wide off-axis high frequency Response
Metal black-can and Safety cable
Removable Terminal block with loop-through Terminations
Overload Protection Circuitry

Specifications

Brand : TOA
Enclosure : Bass-reflex type
Rated Input : 60 W (high impedance)
Power Handling : Continuous pink noise: 90 W (8 ohm), Continuous program: 180 W (8 ohm)
Impedance : 100 V line: 170 ohm (60 W), 330 ohm (30 W), 670 ohm (15 W), 3.3 kohm (3 W) 70 V line: 83 ohm (60 W), 170 ohm (30 W), 330 ohm (15 W), 670 ohm (7.5 W), 3.3 kohm (1.5 W), 25 V line: 83 ohm (7.5 W), 170 ohm (3.7 W), 330 ohm (1.9 W), 670 ohm (0.9 W), 3.3 k ohm (0.2 W), 8 ohm
Frequency Response : 60 Hz - 20 kHz (-10 dB), 45 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
Speaker Component : High frequency: Dome-type, Low frequency: 16 cm cone-type
Mounting Hole : Ø250 mm (Maximum ceiling thickness: 37 mm)
Input Terminal : Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Finish : Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint
Dimensions : Ø280 x 227 (D) mm
Weight : 5.1 kg (including mounting accessories)
