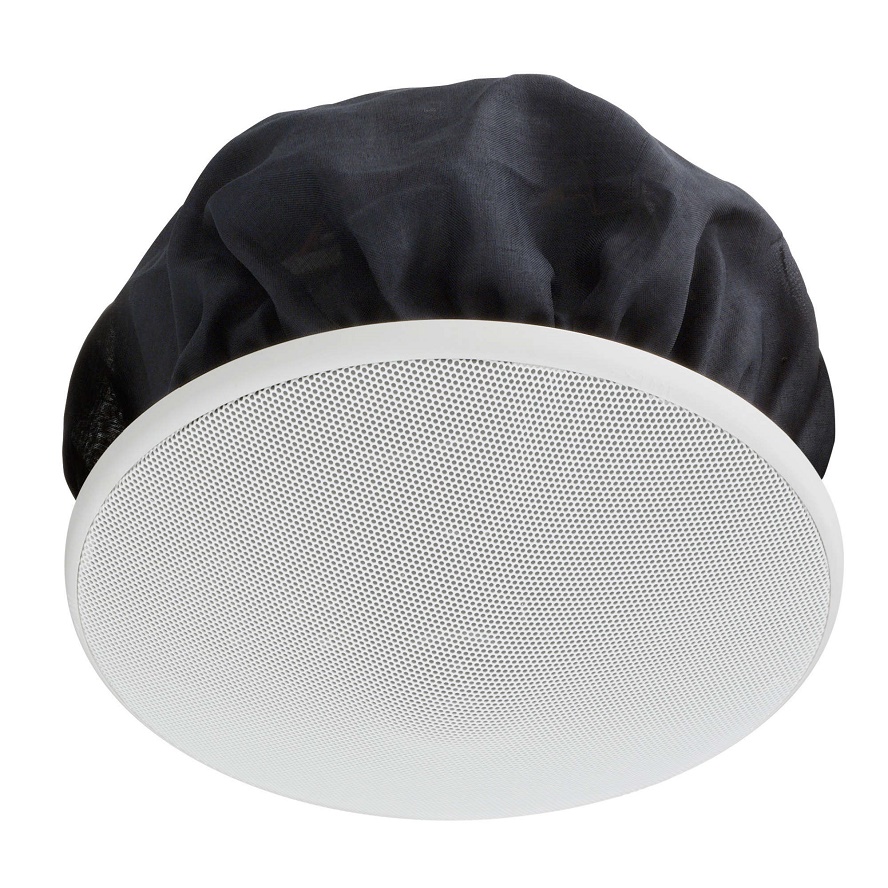

TOA F-2352SC Wide-Dispersion Ceiling Speaker for Public Address & Voice Evacuation Systems

Name: TOA F-2352SC Wide-Dispersion Ceiling Speaker for Public Address &amp; Voice Evacuation Systems
SKU: FSIN0000361894
Price: 17700.00 INR
Availability: InStock

See all products from toa

₹ 17,700.00 GST included

Co-axial: 5 inch Cone Driver and Dome Tweeter. Special Diffuser provides Wide off-axis high frequency Response. Four Pole push-terminal Input Connector. Dust Cover to Protect Components. Low power applications and medium ceiling height (2 to 4m).

In stock

Compare

Product Code : FSIN0000361894 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Wide-Dispersion Ceiling Speaker, F-2352SC Covers an Extremely Wide area and can be used for 25, 70 and 100 V Line Applications. Well-balanced Sound can be heard Uniformly at any Location.

Features

Co-axial: 5 inch Cone Driver and Dome Tweeter
Special Diffuser provides Wide off-axis high frequency Response
Four Pole push-terminal Input Connector
Dust Cover to Protect Components
Low power applications and medium ceiling height (2 to 4m)

Specifications

Brand : TOA
Rated Input : 6 W (high impedance)
Power Handling : Continuous pink noise: 9 W (8 ohm), Continuous program: 18 W (8 ohm)
Impedance : 100 V line: 1.7 kohm (6 W), 3.3 kohm (3 W), 10 kohm (1 W), 20 kohm (0.5 W), 70 V line: 830 ohm (6 W), 1.7 kohm (3 W), 3.3 kohm (1.5 W), 10 kohm (0.5 W), 20 kohm (0.25 W) 25 V line: 830 ohm (0.75 W), 1.7 kohm (0.4 W), 3.3 kohm (0.2 W), 10 kohm (0.06 W), 20 kohm (0.03 W) 8 ohm
Frequency Response : 80 Hz - 20 kHz (-10 dB), 50 Hz - 20 kHz (-20 dB) at installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling.)
Speaker Component : High frequency: Balanced dome-type Low frequency: 12 cm cone-type
Mounting Hole : Ø200 mm (Maximum ceiling thickness: 37 mm)
Input Terminal : Push-in connector (Bridging terminal-2 branch type)
Finish Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint Dust-proof bag: Artificial fiber, black
Dimensions : Ø230 x 154 (D) mm
Weight : 1.5 kg (including panel)
Included Accessories : Panel …1, Paper pattern …1
