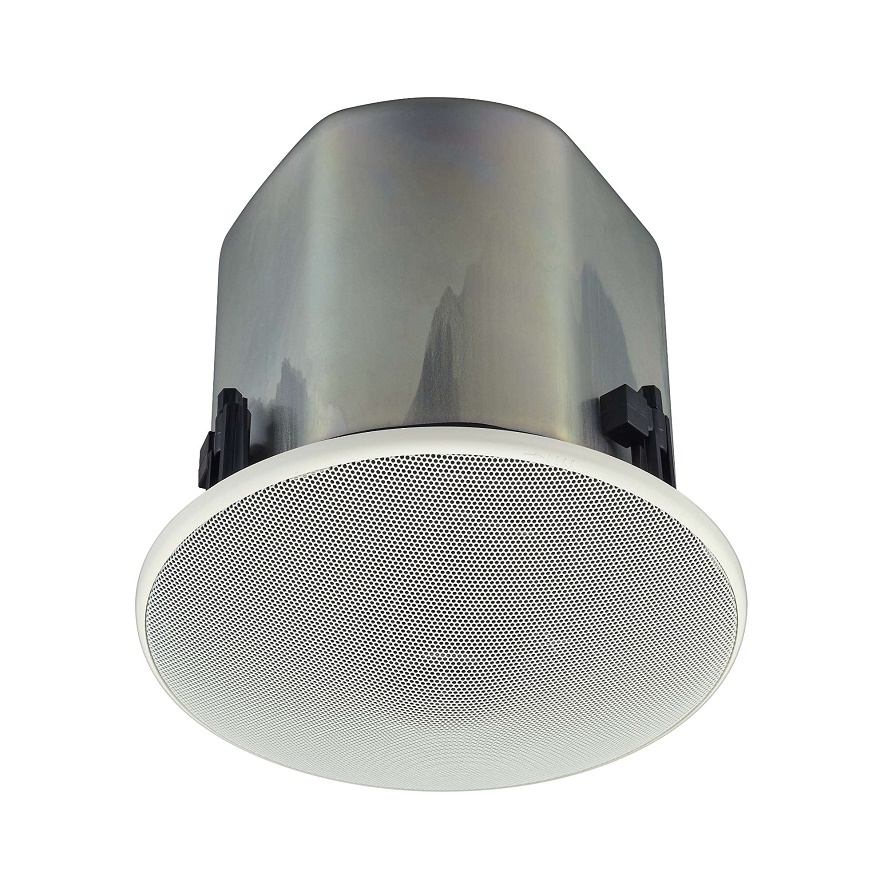

TOA F-2352C Wide-Dispersion Ceiling Speaker for Public Address & Voice Evacuation Systems

Name: TOA F-2352C Wide-Dispersion Ceiling Speaker for Public Address &amp; Voice Evacuation Systems
SKU: FSIN0000361893
Price: 30680.00 INR
Availability: InStock

See all products from toa

₹ 30,680.00 GST included

Ported Bass-reflex Design. Co-axial: 5 inch Cone Driver and Dome Tweeter. Special Diffuser provides Wide off-axis high frequency Response. Metal black-can and Safety cable. Removable Terminal block with loop-through Terminations. Overload Protection Circuitry. For medium ceiling height (2 to 4 m).

In stock

Compare

Product Code : FSIN0000361893 Brand: TOA Seller: Approved by : [woo_pro_badges_extended]

quick processing
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

TOA Wide-Dispersion Ceiling Speaker, F-2352C Covers an Extremely Wide area and can be used for 25, 70 and 100 V Line Applications. Well-balanced Sound can be heard Uniformly at any Location.

Features

Ported Bass-reflex Design
Co-axial: 5 inch Cone Driver and Dome Tweeter
Special Diffuser provides Wide off-axis high frequency Response
Metal black-can and Safety cable.
Removable Terminablock with loop-through Terminations
Overload Protection Circuitry
For medium ceiling height (2 to 4 m)

Specifications

Brand : TOA
Enclosure : Bass-reflex type
Rated Input : 30 W (high impedance)
Power Handling : Continuous pink noise: 60 W (8 ohm), Continuous program: 120 W (8 ohm)
Impedance : 100 V line: 330 ohm (30 W), 1 k ohm (10 W), 3.3 kohm (3 W), 10 kohm (1 W) 70 V line: 170 ohm (30 W), 330 ohm (15 W), 1 kohm (5 W), 3.3 kohm (1.5 W), 10 kohm (0.5 W) 25 V line: 170 ohm (3.7 W), 330 ohm (1.9 W), 1 kohm (0.6 W), 3.3 kohm (0.2 W), 10 kohm (0.06 W), 8 ohm
Frequency Response : 70 Hz-20 Hz, (minus 10 dB), 50Hz - 20Khz (minus 20dB) at installation in 1/2 free sound field), (Measured by installing the unit in the center of a ceiling.)
Speaker Component : High frequency: Balanced dome-type, Low frequency: 12 cm cone-type
Mounting Hole : Ø200 mm (Maximum ceiling thickness: 37 mm)
Input Terminal : Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Finish : Enclosure: Steel plate, plating Baffle: Fire-resistant ABS resin (resin material grade: UL-94 V-0), black Rim: Fire-resistant ABS resin (resin material grade: UL-94 V-0), white, paint Punched net: Steel plate, white, paint
Dimensions : Ø230 x 229 (D) mm
Weight : 3.7 kg (including mounting accessories)
